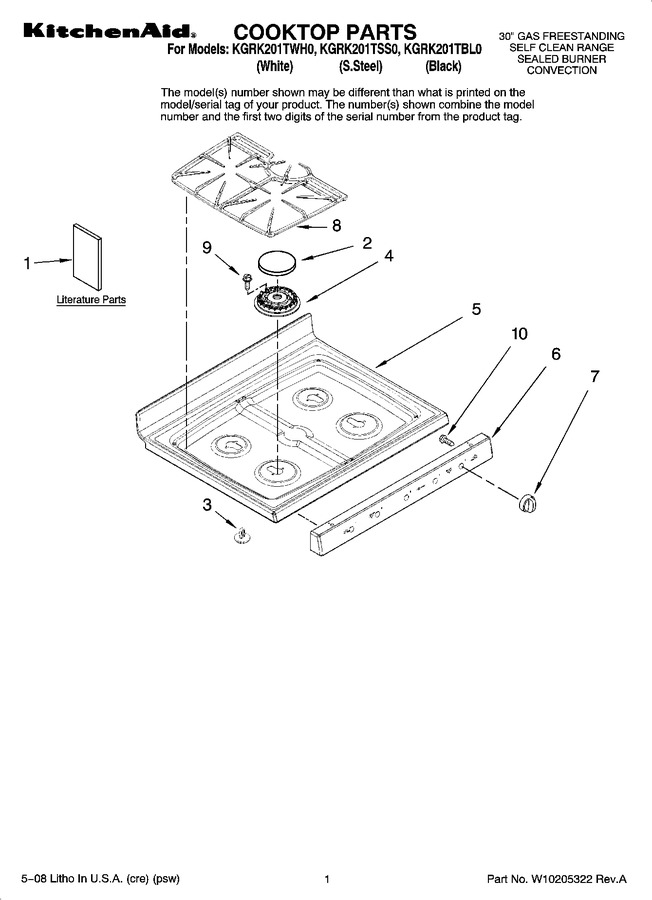

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168000		Wiring Diagram		Appelez-nous	-
1	W10188242		Installation Instructions		Appelez-nous	-
1	W10185364		Owners Manual		Appelez-nous	-
2	7504P295-60		Cap, Burner (lf) (gray)   (Replaces: W10177368)				$ 82.77
2	W10177370		Cap, Burner (rf) (gray)		Appelez-nous	-
2	WP7504P299-60		Cap, Burner (lf) (black)   (Replaces: W10177375)				$ 83.03
2	W10168355		Cap, Burner (rr & Lr) (black)		Appelez-nous	-
2	W10168351		Cap, Burner (rr & Lr) (gray)		Appelez-nous	-
2	WP7504P298-60		Cap, Burner (ctr) (black)   (Replaces: W10177373)				$ 56.92
2	7504P294-60		Cap, Burner (ctr) (gray)   (Replaces: W10177366)				$ 62.87
2	WP7504P300-60		Cap, Burner (rf) (black)   (Replaces: W10177376)				$ 106.62
3	74008761		Spacer, Snap-in				$ 7.55
4	WPW10406243		Burner (ctr)   (Replaces: 74007411)			Immediately	$ 33.50
4	WPW10406797		Burner (lf)   (Replaces: 74007698)				$ 79.64
4	WPW10406283		Burner (rr & Lr)   (Replaces: 74009900)				$ 66.87
4	WPW10406878		Burner (rf)   (Replaces: 74007413)			Immediately	$ 92.12
5	W10182784		Cooktop (white)				$ 193.08
5	W10182781		Cooktop (black)				$ 221.95
6	W10168240		Panel, Manifold (black)		Appelez-nous	-
6	W10168241		Panel, Manifold (white)		Appelez-nous	-
7	WPW10160372		Knob, Control (4) (white)   (Replaces: W10160372)				$ 29.51
7	WPW10160375		Knob, Control (4) (s.steel)   (Replaces: W10160375)				$ 36.56
7	WPW10160374		Knob, Control (4) (black)   (Replaces: W10160374)				$ 25.36
8	W10168265		Grate, Burner (2) (gray)		Appelez-nous	-
8	W10168266		Grate, Burner (2) (black)		Appelez-nous	-
9	WP3368921		Screw (8)   (Replaces: 7101P685-60)			Immediately	$ 6.42
10	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
