01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

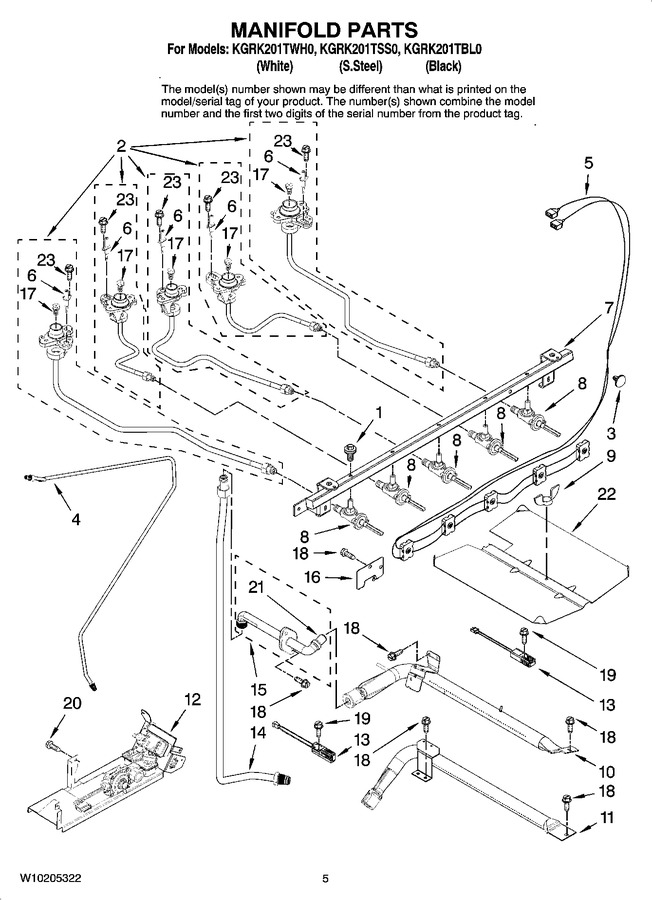

04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003231 | Screw, Valve |
|
- | |||||
| 2 | 7527P101-60 | Holder, Orifice (lf) |
|
- | |||||
| 2 | 7527P125-60 | Holder, Orifice (lr) |
|
$ 72.52 | |||||
| 2 | 7527P097-60 | Holder, Orifice (ctr) |
|
$ 131.36 | |||||
| 2 | 74009099 | Holder, Orifice (rf) |
|
$ 52.51 | |||||
| 2 | W10154209 | Holder, Orifice (rr) |
|
$ 140.40 | |||||
| 3 | 74008761 | Spacer, Snap-in |
|
$ 7.55 | |||||
| 4 | 74008829 | Tubing, Main Supply |
|
- | |||||
| 5 | WP74010753 | Harness, Igniter Includes Switches (Replaces: 7403P983-60) |
|
$ 213.33 | |||||
| 6 | WP74009958 | Ignitor, Top Burner (4) (Replaces: 74009958) |
|
Immediately | $ 28.85 | ||||
| 7 | 7513P499-60 | Pipe, Manifold |
|
- | |||||
| 8 | WP7502P499-60 | Valve (lf) (Replaces: 74010629) |
|
$ 234.74 | |||||
| 8 | 74010751 | Valve (rf) |
|
$ 242.95 | |||||
| 8 | 74010752 | Valve (lr/rr/ctr) |
|
- | |||||
| 9 | 7103P030-60 | Nut (Replaces: 790431) |
|
$ 6.37 | |||||
| 10 | 74008820 | Burner, Broiler |
|
- | |||||
| 11 | 31945701 | Burner, Bake |
|
- | |||||
| 12 | 74010218 | Valve/regulator |
|
- | |||||
| 13 | 74007498 | Igniter (broil) |
|
Immediately | $ 78.40 | ||||
| 13 | WP7432P136-60 | Igniter (bake) (Replaces: 74008064) |
|
Immediately | $ 84.62 | ||||
| 14 | 74008830 | Tubing (broiler Fitting To Valve) |
|
$ 74.95 | |||||
| 15 | 74008818 | Fitting, Broiler |
|
$ 73.73 | |||||
| 16 | 4005F421-45 | Cover, Igniter |
|
- | |||||
| 17 | 74008873 | Orifice, Burner (right Rear) |
|
- | |||||
| 17 | 74008874 | Orifice, Burner (left Front) |
|
- | |||||
| 17 | 74008875 | Orifice, Burner (right Front) |
|
- | |||||
| 18 | W11233072 | Screw (Replaces: 74002979) |
|
Immediately | $ 12.62 | ||||
| 19 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 20 | WP4159193 | Screw (Replaces: 7101P027-60) |
|
$ 4.29 | |||||
| 21 | 74008834 | Orifice |
|
$ 46.76 | |||||
| 22 | 3601P336-45 | Baffle, Broil Burner (Replaces: W10156134) |
|
$ 194.65 | |||||
| 23 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 74008871 | Spuds, Lp Gas (kit Of 5) |
|
$ 31.65 |
