01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)

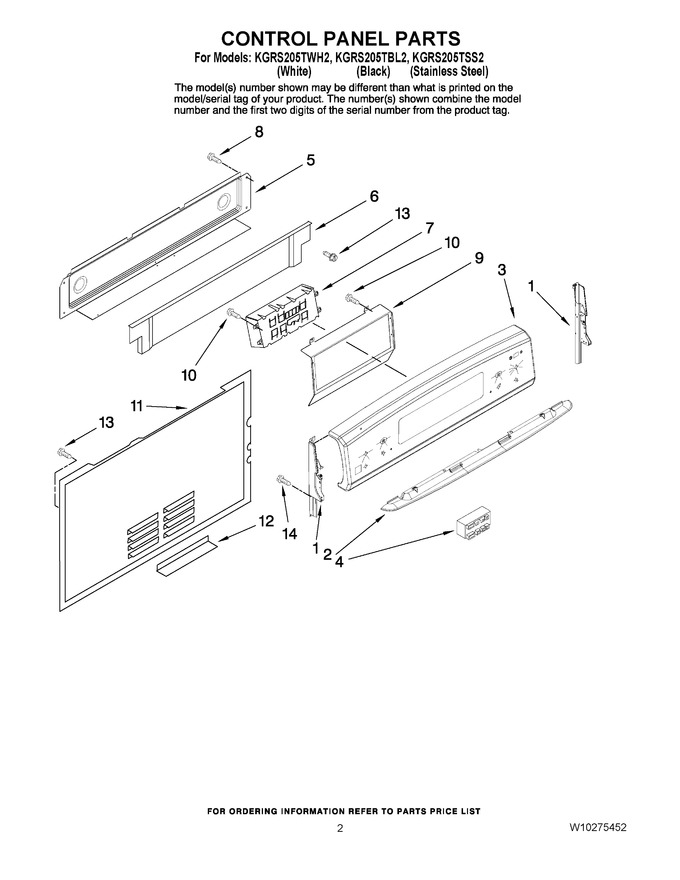

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3807F703-70		Endcap, Left Hand (black)		Appelez-nous	-
1	3807F703-71		Endcap, Left Hand (white)		Appelez-nous	-
1	3807F702-70		Endcap, Right Hand (black)		Appelez-nous	-
1	3807F702-71		Endcap, Right Hand (white)		Appelez-nous	-
2	3604F383-09		Heat Shield,visor (black)		Appelez-nous	-
2	3604F383-81		Heat Shield,visor (white)		Appelez-nous	-
3	WPW10160634		Panel, Backguard & Switch Assy (s.steel)   (Replaces: W10218264)				$ 279.82
3	WPW10160634		Panel, Backguard & Switch Assy (black)   (Replaces: W10218262)				$ 279.82
3	WPW10160634		Panel, Backguard & Switch Assy (white)   (Replaces: W10218265)				$ 279.82
4	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 305.10
5	4005F804-51		Cover, Upper				$ 30.01
6	3604F381-19		Shield, Vent				$ 31.31
7	W10178396		Control		Appelez-nous	-
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
9	3801F945-51		Bracket, Control				$ 53.75
10	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
11	4005F748-51		Cover, Main Wire		Appelez-nous	-
12	4005P703-51		Bottom, Wire Cover		Appelez-nous	-
13	3196556		Screw		Appelez-nous	-
14	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
