01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)

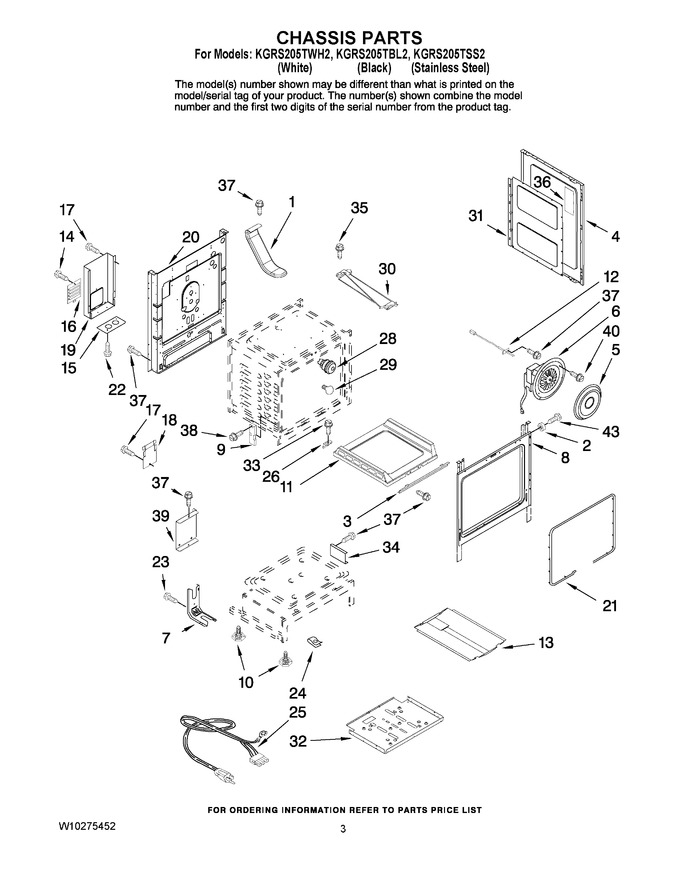

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P080-60		Vent, Oven		Appelez-nous	-
2	74008690		Spacer, Side Panel   (Replaces: 8010P148-60)				$ 19.49
3	3807P680-45		Support, Oven Bottom				$ 33.39
4	2618F172-58		Panel, Side (2) (white)				$ 47.61
4	2618F172-69		Panel, Side (2) (black)				$ 81.90
5	3605F305-19		Plate, Convect		Appelez-nous	-
6	7427P108-60		Fan, Convect		Appelez-nous	-
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 4.69
8	N/P		Frame, Front (not Serviced)		Appelez-nous	-
9	WP74010551		Hinge, Receiver   (Replaces: 7106P125-60)			Immediately	$ 12.60
10	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 25.30
11	2205F053-61		Bottom, Oven		Appelez-nous	-
12	12001655		Sensor, Oven   (Replaces: 7430P041-60)			Immediately	$ 41.01
13	3601F356-45		Baffle, Burner				$ 105.12
14	7101P366-60		Screw		Appelez-nous	-
15	3605F146-51		Plate, Conduit				$ 6.06
16	3605P146-51		Panel, Access		Appelez-nous	-
17	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 12.62
18	4005F753-45		Cover, Broil		Appelez-nous	-
19	4005P703-51		Cover, Lower Wire		Appelez-nous	-
20	4002F347-51		Back, Main		Appelez-nous	-
21	W11562931		Seal, Oven   (Replaces: W10162385)			Immediately	$ 78.98
22	WP4159193		Screw   (Replaces: 7101P336-60)				$ 4.29
23	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
24	74008835		Clip (4)   (Replaces: 7112P158-60)				$ 8.95
25	7402P109-60		Cord, Power				$ 8.90
26	3801F822-45		Bracket, Oven Bottom		Appelez-nous	-
28	WP74011278		Light Assembly   (Replaces: 7407P181-60)				$ 101.56
29	8009		Bulb, Oven Light   (Replaces: 7407P103-60)			Immediately	$ 16.80
30	W10792991		Latch, Door Lock   (Replaces: 8002P104-60)				$ 305.63
31	3804F316-51		Retainer, Insulation		Appelez-nous	-
32	3604P409-51		Shield, Heat		Appelez-nous	-
33	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 12.62
34	3801P798-51		Bracket, Oven		Appelez-nous	-
35	3196166		Screw				$ 6.31
36	7002P494-60		Insulation		Appelez-nous	-
37	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
38	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29
39	3801P798-51		Bracket, Oven Support		Appelez-nous	-
40	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
43	7101P618-60		Screw		Appelez-nous	-
NI	7002P424-60		Insulation, Wrap		Appelez-nous	-
NI	7002P492-60		Insulation, Back				$ 59.49
