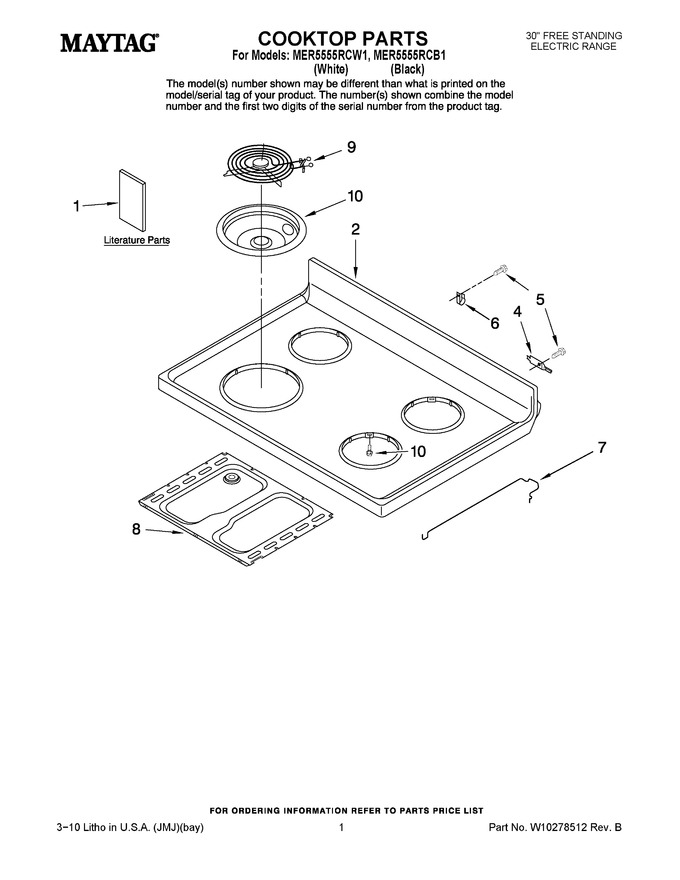

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8113P737-60 | Use & Care Guide |
|
- | |||||
| 1 | 8119P415-60 | Wiring Diagram |
|
- | |||||
| 1 | 8101P506-60 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Brochure, Safe Tip |
|
- | |||||
| 2 | 2002F240-81 | Cooktop (white) |
|
- | |||||
| 2 | 2002F240-09 | Cooktop (black) |
|
- | |||||
| 4 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 6 | WP308605 | Strain Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 7 | WP3195812 | Rod, Support (2) (Replaces: 3195812) |
|
Immediately | $ 7.48 | ||||
| 8 | 2205F053-61 | Bottom, Burner Box |
|
- | |||||
| 9 | WPW10345410 | Element 2350w (2) (Replaces: 7406P477-60) |
|
Immediately | $ 165.96 | ||||
| 9 | WP9761346 | Element 1500w (2) (Replaces: 7406P476-60) |
|
Immediately | $ 94.16 | ||||
| 10 | WPW10196405 | Pan, Drip 8`` (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 10 | WPW10196406 | Pan, Drip 6`` (Replaces: W10196406) |
|
Immediately | $ 12.05 |
