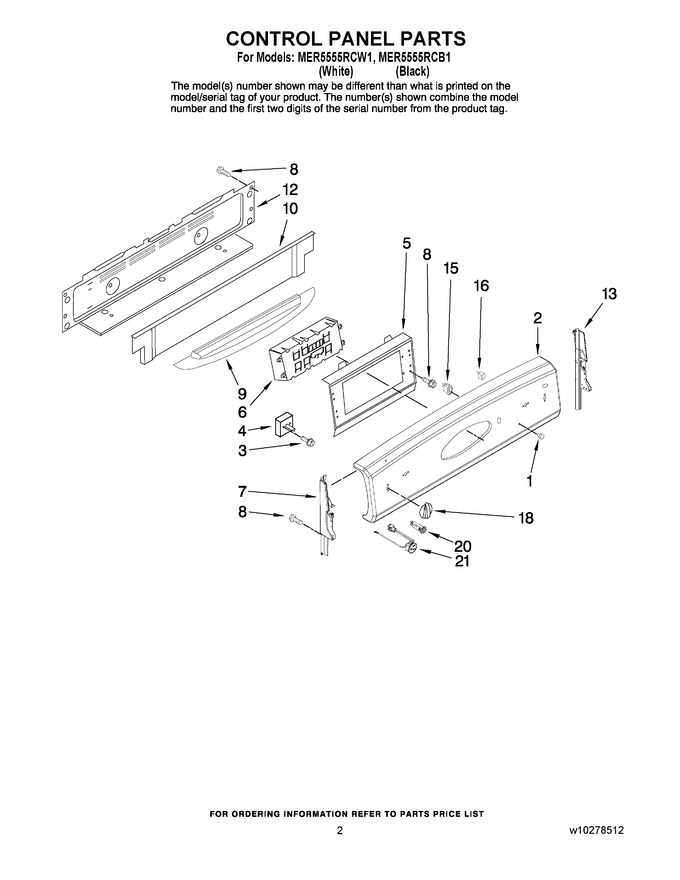

02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3196068		Lens   (Replaces: 3196068)			Immediately	$ 5.63
2	2602D168-09		Panel, Backguard (black)		Appelez-nous	-
2	2602D168-81		Panel, Backguard (white)		Appelez-nous	-
3	WP3400882		Screw, Switch (10)   (Replaces: 3400882)			Immediately	$ 6.47
4	WP7403P239-60		Switch, Infinte (6`` (rr/lf) (2)   (Replaces: 7403P372-60)			Immediately	$ 35.10
4	WP7403P238-60		Switch, Infinte (8`` (rf/lr) (2)   (Replaces: 7403P373-60)			Immediately	$ 57.78
5	3801F844-51		Bracket, Control				$ 34.28
6	5701M651-60		Control W/overlay (black)		Appelez-nous	-
6	5701M649-60		Control W/overlay (white)		Appelez-nous	-
7	3807F703-71		End Cap, Left (white)		Appelez-nous	-
7	3807F703-70		End Cap, Left (black)		Appelez-nous	-
8	W11233072		Screw   (Replaces: 4159450)			Immediately	$ 12.62
9	3604F382-81		Shield, Heat Visor (white)				$ 32.49
9	3604F382-09		Shield, Heat Visor (black)				$ 50.83
10	3604P381-19		Shield, Vent		Appelez-nous	-
12	4005F803-51		Cover, Rear Wire				$ 19.75
13	3807F702-70		End Cap, Right (black)		Appelez-nous	-
13	3807F702-71		End Cap, Right (white)		Appelez-nous	-
15	7403P985-60		Switch, Rocker (black)   (Replaces: 7403P756-60)				$ 82.20
15	WP74010226		Switch, Rocker (white)   (Replaces: 7403P757-60)				$ 86.45
16	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.02
18	WP74008947		Knob (4) (white/chrome)   (Replaces: 7737P234-60)				$ 18.70
18	7737P232-60		Knob (4) (black/chrome)		Appelez-nous	-
20	7429P007-60		Brkr., Circuit (black)		Appelez-nous	-
20	7429P009-60		Brkr., Circuit (white)		Appelez-nous	-
21	7408P056-60		Receptacle (black)		Appelez-nous	-
21	7408P057-60		Receptacle (white)		Appelez-nous	-
