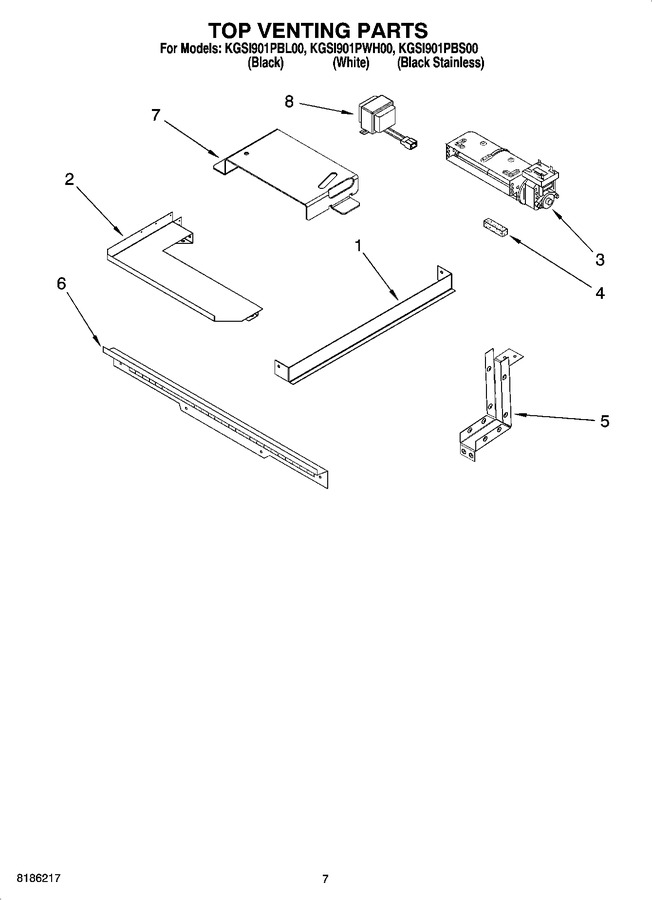

05 - Top Venting Parts


06 - Internal Oven Parts


07 - Cooktop Burner Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9758810		Front, Air Duct		Appelez-nous	-
1	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
2	9757827		Top, Air Duct (l.hand)		Appelez-nous	-
2	9757828		Top, Air Duct (r.hand)		Appelez-nous	-
3	W10810687		Blower   (Replaces: 8300223)			Immediately	$ 309.01
3	WP4455352		Bracket   (Replaces: 4455352)				$ 32.15
3	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 6.47
4	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
5	9756639		Corner, Air Duct (r.hand)		Appelez-nous	-
5	9756638		Corner, Air Duct (l.hand)		Appelez-nous	-
6	9757117BL		Vent, (control Panel)		Appelez-nous	-
6	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
7	9757829		Bracket, Transfmr		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
8	9756551		Transformer				$ 121.36
8	3179776		Screw		Appelez-nous	-
