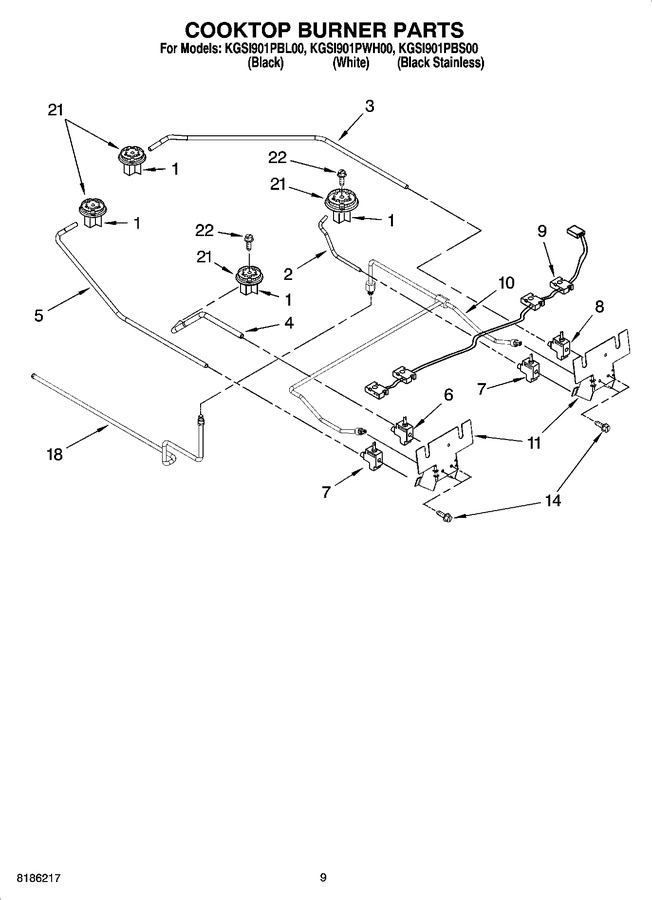

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9782447 | Burner Base W/orifice (small (2)) |
|
$ 47.46 | |||||
| 1 | WPW10244714 | Burner Base W/orifice (large) (Replaces: 9782448) |
|
$ 104.54 | |||||
| 1 | 9782449 | Burner Base W/orifice (turbi) |
|
- | |||||
| 2 | 4453747 | Tubing, Burner (rf) |
|
- | |||||
| 3 | 4453748 | Tubing, Burner (rr) |
|
- | |||||
| 4 | 9759760 | Tubing, Burner (lf) |
|
- | |||||
| 5 | 4453749 | Tubing, Burner (lr) |
|
- | |||||
| 6 | 4456818 | Valve, Turbi |
|
$ 231.30 | |||||
| 7 | WP4456816 | Valve, Burner Small (2) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 8 | WP4456817 | Valve, Burner Large (Replaces: 4456817) |
|
$ 286.38 | |||||
| 9 | 9756822 | Spark Switch & Harness Assembly |
|
$ 197.63 | |||||
| 10 | 4453755 | Tube, Manifold |
|
- | |||||
| 11 | 4453753 | Manifold |
|
- | |||||
| 11 | 3179776 | Screw |
|
- | |||||
| 14 | 8523704 | Bolt, Valve (4) |
|
- | |||||
| 18 | 4453754 | Tubing Gds To Manifold |
|
$ 208.86 | |||||
| 21 | WP4455981 | Head, Burner (large) (Replaces: 4455981) |
|
Immediately | $ 78.77 | ||||
| 21 | 9759894 | Head, Burner (small) |
|
$ 25.50 | |||||
| 21 | 4455849 | Head, Burner (turbi) |
|
$ 47.68 | |||||
| 22 | WP3368921 | Screw, 7-18 X .750 (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 9757785BL | Filler, Counter Top (black) |
|
$ 102.15 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 4448664 | Clamp |
|
$ 18.35 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 | ||||||
| N/A | Miscellaneous |
|
- | ||||||
| 814381 | Hinge Pin Kit |
|
$ 7.73 | ||||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | ||||||
| W11447673 | Anti-tip Assembly (Replaces: 9782676) |
|
Immediately | $ 28.64 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| W10851603 | Kit, Orific (Replaces: 9757427) |
|
$ 104.37 | ||||||
| 9757785WH | Filler, Counter Top (white) |
|
$ 187.25 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire (12 Ga. 150 C Red) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire (14 Ga. 150 C White) |
|
- | ||||||
| 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | ||||||
| 9757693 | Harness, Wire (main) |
|
- | ||||||
| 9756892 | Harness, Wire (cooktop Power) |
|
$ 49.60 | ||||||
| 9756920 | Harness, Wire Bake/broil Ignit. |
|
$ 59.10 | ||||||
| 9756554 | Harness, Wire |
|
$ 71.03 | ||||||
| 313660 | Clip, Ground Wire |
|
- |
