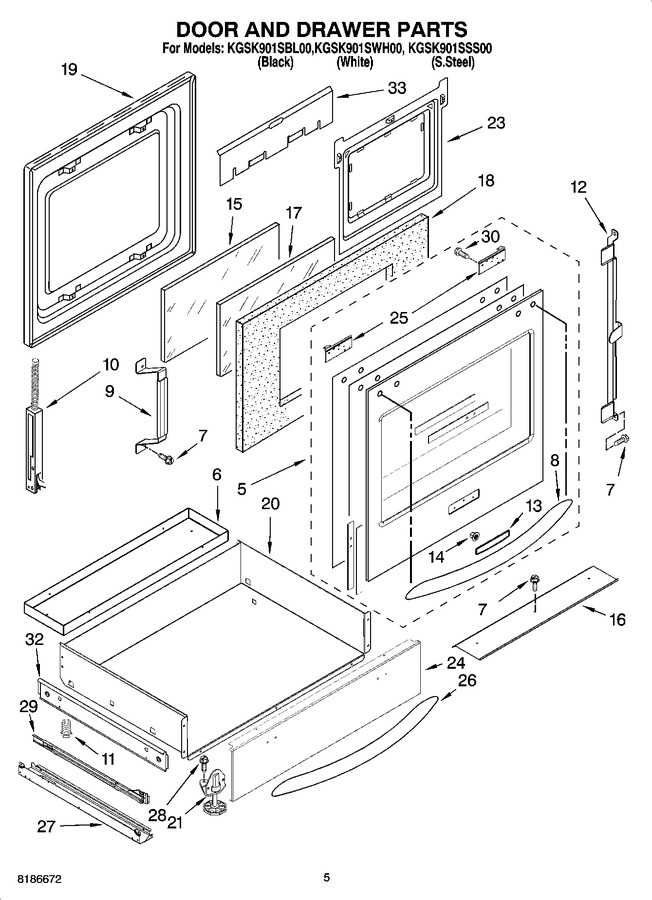

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 9762766SS | Glass, Door Front (s.steel) |
|
- | |||||
| 5 | 9762766WH | Glass, Door Front (white) |
|
- | |||||
| 5 | 9762766BL | Glass, Door Front (black) |
|
- | |||||
| 6 | 9760592 | Panel, Drawer |
|
- | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 8 | 8303774SS | Handle, Door (s.steel) |
|
- | |||||
| 8 | 8303774WH | Handle, Door (white) |
|
- | |||||
| 8 | 8303774BL | Handle, Door (black) |
|
- | |||||
| 9 | 9759230 | Bracket, Central |
|
$ 36.30 | |||||
| 10 | WP9760574 | Hinge, Door (orange Lh) (Replaces: 9760580) |
|
Immediately | $ 60.36 | ||||
| 10 | WP9760579 | Hinge, Door (orange Rh) (Replaces: 9760579) |
|
Immediately | $ 64.35 | ||||
| 11 | WPW10058460 | Foot, Rear (Replaces: 9761935) |
|
Immediately | $ 7.07 | ||||
| 12 | WP9759229 | Bracket, Side (Replaces: 9759229) |
|
$ 160.71 | |||||
| 13 | 9763444BL | Nameplate (black) |
|
- | |||||
| 13 | 9763444SS | Nameplate (s.steel) |
|
- | |||||
| 13 | 9763444WH | Nameplate (white) |
|
- | |||||
| 14 | WP3400832 | Nut (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 15 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 127.76 | ||||
| 16 | 4457114 | Shield, Heat-bottom |
|
$ 186.68 | |||||
| 17 | WP9759225 | Glass, Inner (2) (Replaces: 9759225) |
|
Immediately | $ 174.78 | ||||
| 18 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 19 | WP9759413 | Liner, Door (Replaces: 9759413) |
|
$ 317.54 | |||||
| 20 | 9757806 | Drawer Assy |
|
$ 182.02 | |||||
| 21 | WP3196037 | Foot, Front (Replaces: 3196037) |
|
$ 74.67 | |||||
| 23 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 275.13 | |||||
| 24 | 9761747BL | Front, Drawer (black) |
|
- | |||||
| 24 | 9761747WH | Front, Drawer (white) |
|
- | |||||
| 24 | 9761747SS | Front, Drawer (s.steel) |
|
- | |||||
| 25 | 9763496 | Bracket, Handle (l.hand) |
|
- | |||||
| 25 | 9763497 | Bracket, Handle (r.hand) |
|
- | |||||
| 26 | 9761573SS | Handle, Drawer (s.steel) |
|
- | |||||
| 26 | 9761573WH | Handle, Drawer (white) |
|
$ 79.22 | |||||
| 26 | 9761573BL | Handle, Drawer (black) |
|
- | |||||
| 27 | 9759954 | Side, Base (l.side) |
|
$ 88.47 | |||||
| 27 | 9759953 | Side, Base (r.side) |
|
$ 108.70 | |||||
| 28 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 29 | 9756837 | Track, Drawer (r.side) |
|
- | |||||
| 29 | 9756839 | Track, Drawer (l.side) |
|
$ 44.69 | |||||
| 30 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 32 | 9756842 | Slide-drawer (l.hand) |
|
$ 70.28 | |||||
| 32 | 9756841 | Slide-drawer (r.hand) |
|
- | |||||
| 33 | 4457104 | Shield, Heat Top (Replaces: 4457103) |
|
$ 33.62 |
