Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 9761069 Tubing, Burner (rf) Special Order $ 49.98

3 9761070 Tubing, Burner (rr) Special Order $ 52.24

4 9761561 Tubing, Burner (lf) Appelez-nous -
5 9761068 Tubing, Burner (lr) Special Order $ 50.22

6 4456818 Valve, Burner (turbi) Special Order $ 231.30

7 WP4456816 Valve, Burner Small (2)   (Replaces: 4456816) In-Stock Immediately $ 286.55

8 WP4456817 Valve, Burner Large   (Replaces: 4456817) Special Order $ 286.38

9 9756822 Spark Switch & Harness Assembly Special Order $ 197.63

10 9761648 Tube, Manifold Special Order $ 66.48

11 9761642 Manifold Special Order $ 165.03

12 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

14 8523704 Bolt, Valve (4) Appelez-nous -
18 4453754 Tubing Gds To Manifold Special Order $ 208.86


    View Diagram in Separate Window     Print Icon   Print Part List

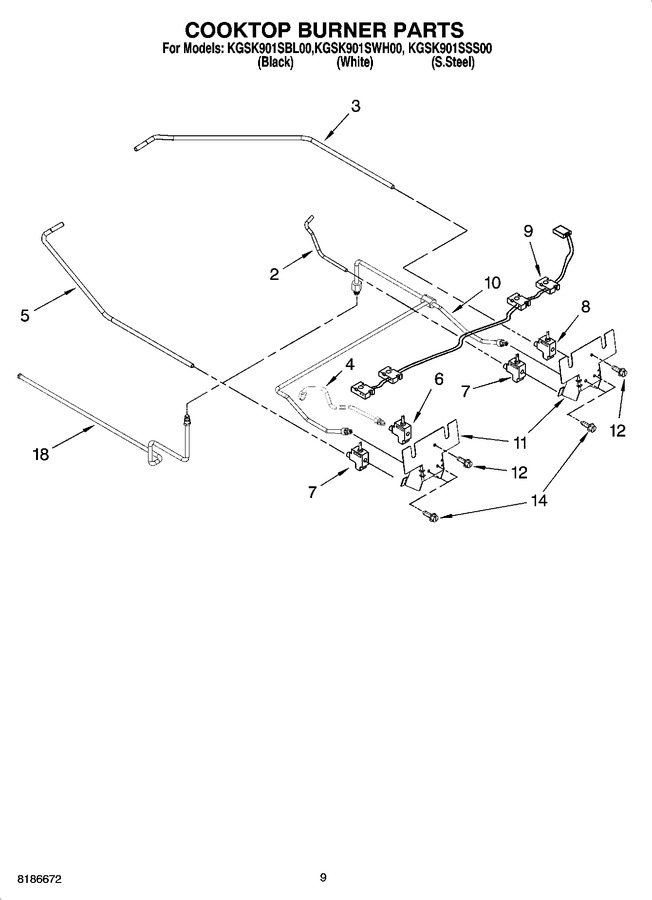

Diagram for KGSK901SSS00
