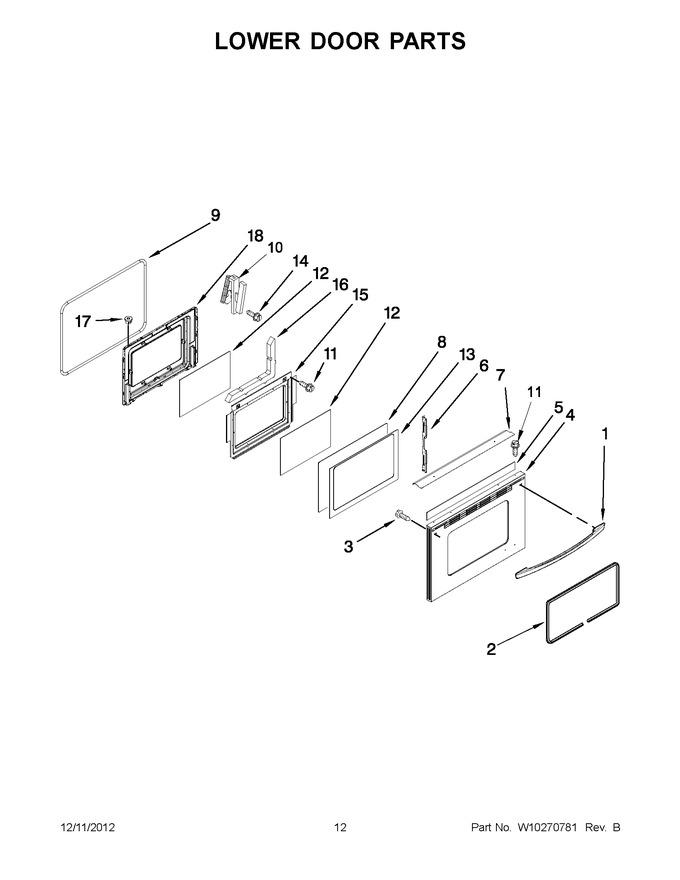

05 - Upper Door Parts


06 - Lower Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011777		Handle, Door   (Replaces: 7701P524-60)				$ 210.30
2	7201P138-60		Gasket, Window		Appelez-nous	-
3	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
4	7760P145-60		Panel, Door		Appelez-nous	-
5	7002P435-60		Insulation, Foil		Appelez-nous	-
6	3804F184-45		Retainer, Glass		Appelez-nous	-
7	3604F440-51		Shield, Door Lock		Appelez-nous	-
8	7902P767-60		Glass, Door		Appelez-nous	-
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 77.61
10	74011142		Hinge, Door   (Replaces: 7106P141-60)			Immediately	$ 108.22
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
12	7902P472-60		Glass, Inner		Appelez-nous	-
13	7902P377-60		Glass, Door Outer		Appelez-nous	-
14	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
15	3601F353-45		Baffle, Oven Door				$ 128.19
16	7002P221-60		Insulation, Door		Appelez-nous	-
17	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
18	2402W271-19		Lining, Door				$ 140.85
