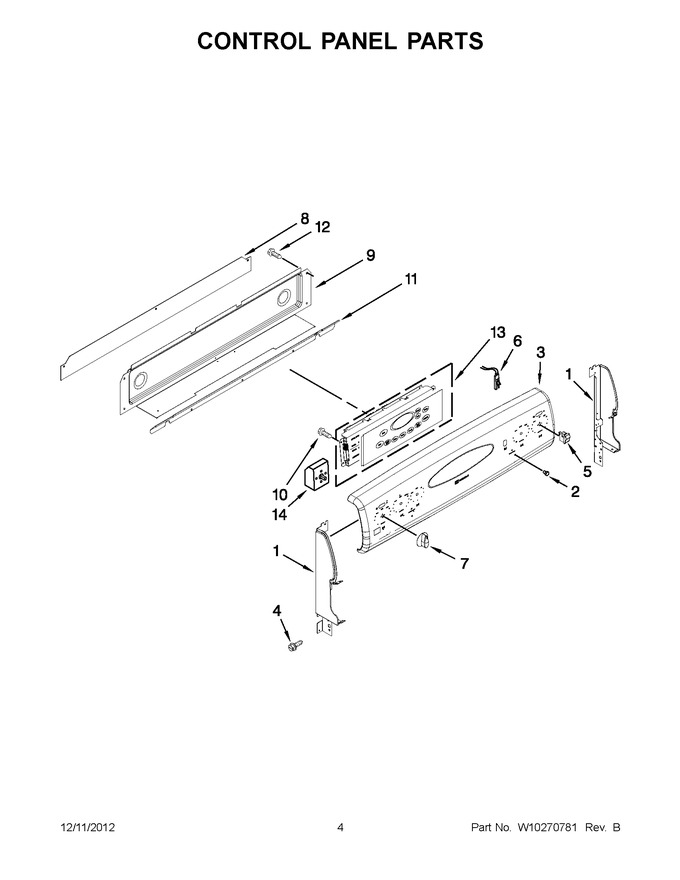

02 - Control Panel Parts
03 - Chassis Parts
04 - Rack And Element Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F733-70 | Support, Backguard (right) |
|
$ 27.86 | |||||
| 1 | 3807F734-70 | Support, Backguard (left) |
|
$ 18.35 | |||||
| 2 | WP7730P011-60 | Lens, Indicator (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 3 | 2602D323-09 | Panel, Control |
|
- | |||||
| 4 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 5 | 7403P985-60 | Switch, Rocker (Replaces: 7403P756-60) |
|
$ 82.20 | |||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 7 | 7737P232-60 | Knobs |
|
- | |||||
| 8 | 3604F387-51 | Shield, Sight |
|
$ 5.02 | |||||
| 9 | 4005F803-51 | Cover, Rear Wire |
|
$ 19.75 | |||||
| 10 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.47 | |||||
| 11 | 3604F405-51 | Shield, Wire |
|
$ 11.78 | |||||
| 12 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 13 | 5777M223-60 | Assembly, Control |
|
- | |||||
| 14 | WP7403P239-60 | Switch, Infinite (left Rear & Right Front) (Replaces: 7403P239-60) |
|
Immediately | $ 35.10 | ||||
| 14 | WP7403P238-60 | Switch, Infinite (left Front & Right Rear) (Replaces: 7403P238-60) |
|
Immediately | $ 57.78 |
