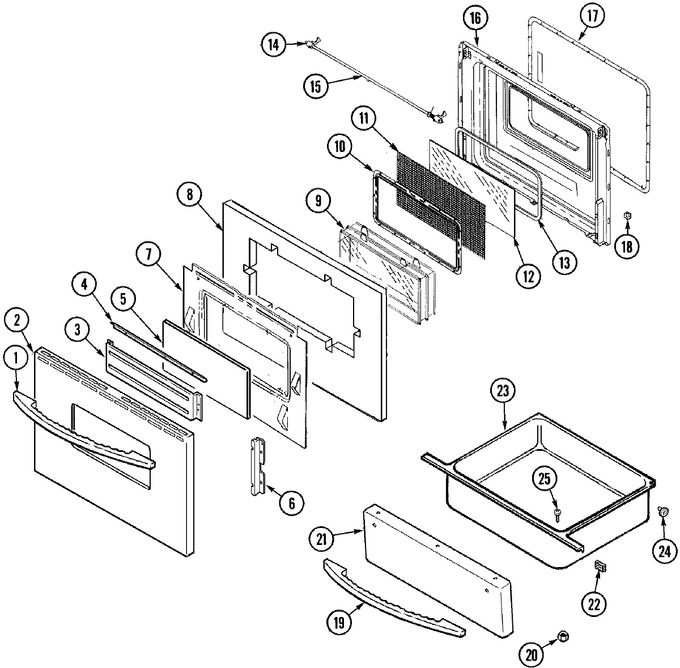

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003617		Handle, Door (blk)	10			$ 101.85
1	WP179051		Screw   (Replaces: 74002059)	10		Immediately	$ 7.16
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74004894		Door Assy (lwr/chr)	10	Appelez-nous	-
3	74005458		Baffle, Door (secondary)	10	Appelez-nous	-
3	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 7.69
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	74004902		Baffle, Auxiliary	10	Appelez-nous	-
5	74005425		Glass, Door (outer-blk)	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74005459		Retainer, Glass (chr)	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74005408		Baffle, Door	10	Appelez-nous	-
8	74005462		Insulation, Door	10	Appelez-nous	-
8	74005412		Insulation, Door	10	Appelez-nous	-
8	74005461		Insulation, Door	10	Appelez-nous	-
9	74005457		Pack Assy, Glass (chr)	10	Appelez-nous	-
9	74005410		Support Assy, Window	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74001108		Retainer, Screen----na	10	Appelez-nous	-
10	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
11	74001107		Screen, Inner Glass	10	Appelez-nous	-
12	7902P392-60		Glass, Inner	10	Appelez-nous	-
13	74001106		Gasket, Window	10	Appelez-nous	-
14	74001110		Lever, Switch Activator (rt)	10	Appelez-nous	-
14	74001112		Spring	10	Appelez-nous	-
14	74001111		Lever, Switch Activator (lt)	10	Appelez-nous	-
14	74001168		Washer	10	Appelez-nous	-
15	74001113		Shaft, Lever	10	Appelez-nous	-
16	74005406		Lining, Door	10	Appelez-nous	-
18	74003643		Nut, Snap (square-blk)	10			$ 8.02
19	74003617		Handle, Door (blk)	10			$ 101.85
19	WP179051		Screw   (Replaces: 74002059)	10		Immediately	$ 7.16
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
21	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
21	74005426		Panel, Drawer (chr)	10	Appelez-nous	-
22	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
23	71003042		Drawer, Storage	10	Appelez-nous	-
24	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
24	74004079		Shaft, Roller	10	Appelez-nous	-
24	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
25	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
