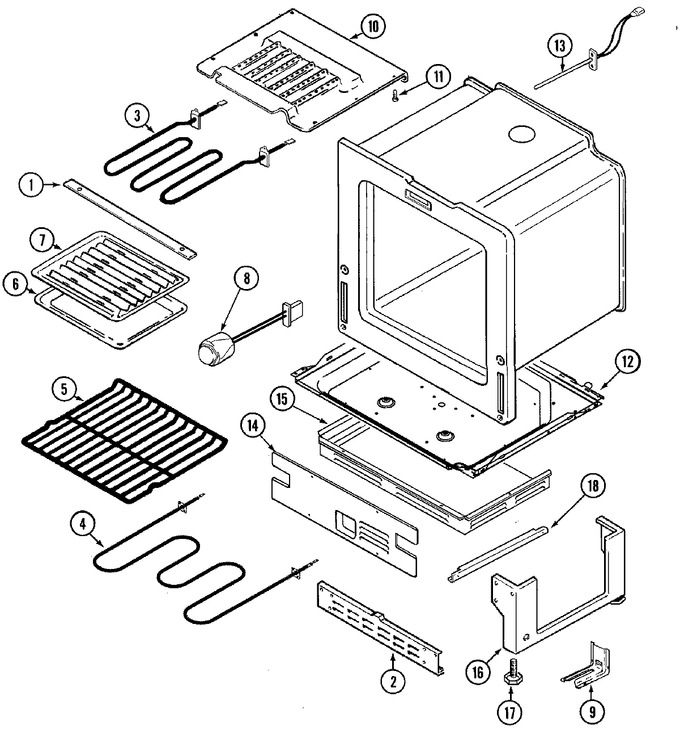

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003563 | Support, Broil Element | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 3 | 7406P086-60 | Element, Broil----na | 10 |
|
- | ||||
| 3 | 74001165 | Washer (stnlss Mesh) | 10 |
|
- | ||||
| 3 | 74005401 | Screw | 10 |
|
$ 5.33 | ||||
| 4 | 74001163 | Element, Bake | 10 |
|
- | ||||
| 4 | 74005401 | Screw | 10 |
|
$ 5.33 | ||||
| 4 | 74001165 | Washer (stnlss Mesh) | 10 |
|
- | ||||
| 5 | 74001808 | Rack, Oven | 10 |
|
- | ||||
| 5 | 74001164 | Rack | 10 |
|
- | ||||
| 6 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 7 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 8 | 74005405 | Light Assy, Oven | 10 |
|
- | ||||
| 8 | WP74009925 | Bulb, Halogen (Replaces: 74004458) | 10 |
|
Immediately | $ 20.37 | |||
| 9 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74005404) | 10 |
|
Immediately | $ 4.69 | |||
| 10 | 3601F237-47 | Baffle, Broil | 10 |
|
- | ||||
| 11 | 74005401 | Screw | 10 |
|
$ 5.33 | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74005403 | Retainer, Insulation | 10 |
|
- | ||||
| 13 | 74001165 | Washer (stnlss Mesh) | 10 |
|
- | ||||
| 13 | 74005402 | Sensor, Oven (w/washer) | 10 |
|
- | ||||
| 13 | 74005401 | Screw | 10 |
|
$ 5.33 | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74001126 | Shield, Microwave Components | 10 |
|
- | ||||
| 15 | 74001120 | Cover, Stirrer Motor | 10 |
|
- | ||||
| 16 | 74003393 | Pedestal, Side | 10 |
|
- | ||||
| 17 | W11665456 | Leg, Leveling (Replaces: 74002373) | 10 |
|
Immediately | $ 25.30 | |||
| 18 | 74003565 | Runner, Drawer | 10 |
|
- |
