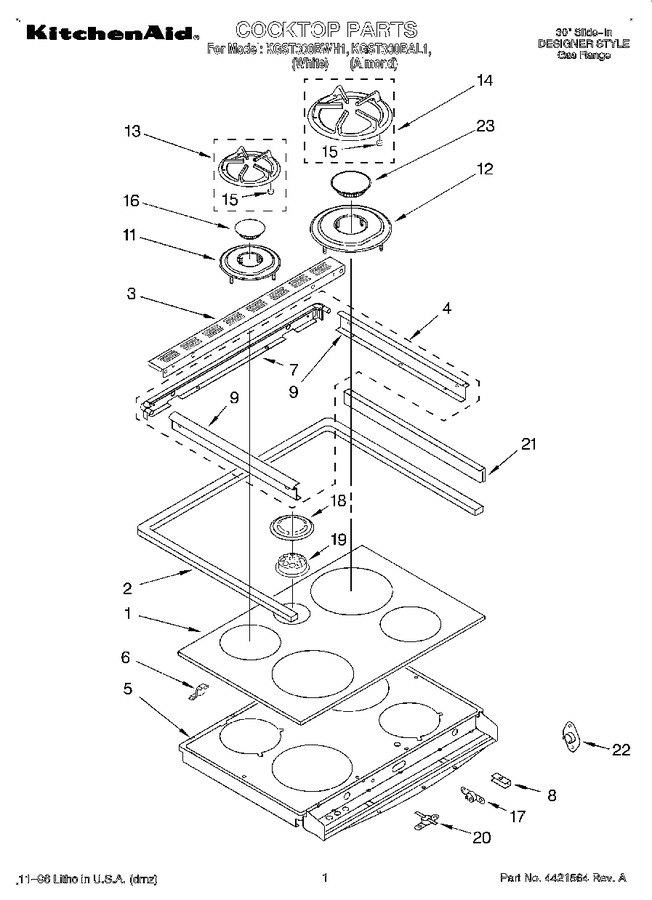

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751340 | Cooktop, Ceran (almond) |
|
- | |||||
| 1 | 9751034 | Cooktop, Ceran (white) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9752090PB | Vent, Rear (black) |
|
- | |||||
| 3 | 9752090PT | Vent, Rear (almond) |
|
- | |||||
| 3 | 9752090PW | Vent, Rear (white) |
|
- | |||||
| 4 | 4421431 | Frame, Cooktop (almond) |
|
- | |||||
| 4 | 9752003 | Frame, Cooktop (washer (2)) |
|
- | |||||
| 4 | 4421430 | Frame, Cooktop (white) |
|
- | |||||
| 5 | 9751274 | Support, Element |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 6 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 7 | 9752045PW | Trim, Rear (includes End Caps) (white) |
|
- | |||||
| 7 | 9752045PT | Trim, Rear (includes End Caps) (almond) |
|
- | |||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 8 | 4211831 | Screw, (4) 10 X 3/4 |
|
- | |||||
| 9 | 9751440PT | Trim, Side (almond) |
|
- | |||||
| 9 | 9751440PW | Trim, Side (white) |
|
- | |||||
| 11 | 3185816 | Bezel, Small Lr-rf (almond Mdl.) |
|
- | |||||
| 11 | 4166262 | Bezel, Small Lr-rf (nut, Zinc No.8-32) |
|
- | |||||
| 11 | 3185817 | Bezel, Small Lr-rf (white Mdl.) |
|
- | |||||
| 12 | 3185820 | Bezel, Large Rr-lf (white Mdl.) |
|
- | |||||
| 12 | 4166262 | Bezel, Large Rr-lf (nut, Zinc No.8-32) |
|
- | |||||
| 12 | 3185819 | Bezel, Large Rr-lf (almond Mdl.) |
|
- | |||||
| 13 | 3186674 | Grates, Small (white Mdl.) |
|
- | |||||
| 13 | 3186673 | Grates, Small (almond Mdl.) |
|
- | |||||
| 14 | 3186676 | Grates, Large (almond Mdl.) |
|
- | |||||
| 14 | 3186677 | Grates, Large (white Mdl.) |
|
- | |||||
| 15 | 814323 | Pad, Grate (5) (Replaces: 3186678) |
|
Immediately | $ 10.28 | ||||
| 16 | 3185797 | Cap, Small (2) (white Mdl.) |
|
- | |||||
| 16 | 3185795 | Cap, Small (2) (almond Mdl.) |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 17 | 9780265 | Screw (2) |
|
- | |||||
| 18 | 4421505 | Cap, Vent (white Mdl.) |
|
- | |||||
| 18 | 4421506 | Cap, Vent (almond Mdl.) |
|
- | |||||
| 19 | 9751366 | Cap, Vent |
|
- | |||||
| 20 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 21 | 9752034 | Gasket, Seal (2) |
|
- | |||||
| 22 | 9752006 | Bimetal |
|
$ 130.03 | |||||
| 23 | 3185792 | Cap, Large (2) (almond Mdl.) |
|
- | |||||
| 23 | 3185794 | Cap, Large (2) (white Mdl.) |
|
- | |||||
| LIT9751761 | Wiring Diagram |
|
- | ||||||
| LIT9751593 | Use And Care Guide |
|
- | ||||||
| LIT9751595 | Instructions, Installation |
|
- | ||||||
| LIT9752390 | Smart & Easy Guide |
|
- | ||||||
| LIT9752669 | Tech Sheet-k/a |
|
- |
