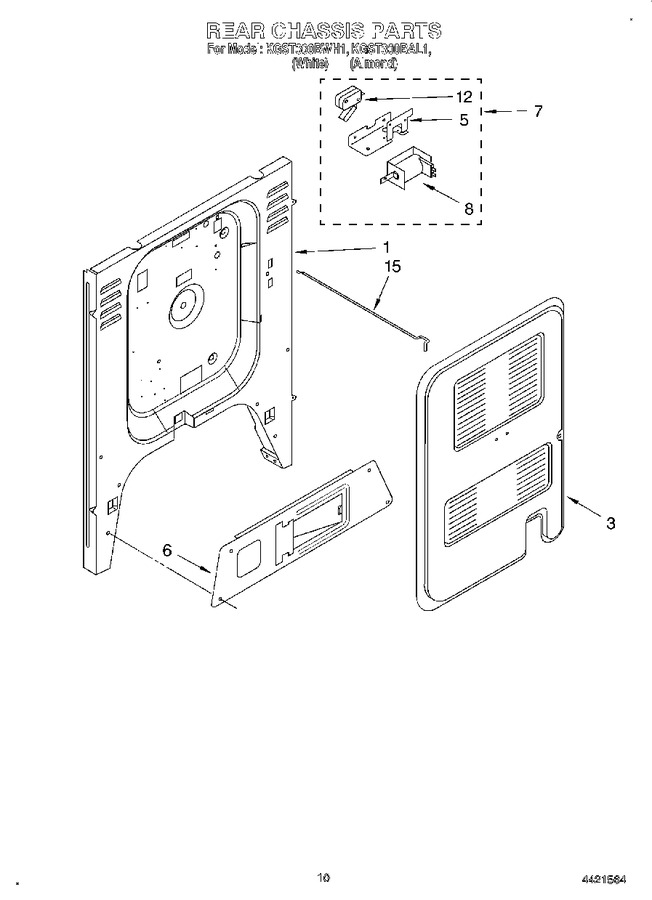

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751051 | Back Panel, Chassis |
|
- | |||||
| 1 | 340184 | Screw (2) No.10-16 X 1 1/2 |
|
$ 12.10 | |||||
| 3 | 9751353 | Panel, Rear Cover |
|
- | |||||
| 3 | 4211813 | Screw, (2) 10 X 3/8 |
|
- | |||||
| 5 | 9751418 | Bracket, Lock |
|
- | |||||
| 5 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 6 | 9751500 | Bracket, Regulator Valve |
|
- | |||||
| 7 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 7 | 9751439 | Oven Lock Assembly |
|
- | |||||
| 8 | 4211875 | Washer |
|
- | |||||
| 8 | 4211945 | Screw, (2) 10-32 X 5/16 |
|
- | |||||
| 8 | 9751590 | Solenoid |
|
- | |||||
| 12 | 9751763 | Switch, Interlock |
|
- | |||||
| 12 | 9750888 | Nut (2) |
|
- | |||||
| 12 | 9750887 | Screw, (2) |
|
- | |||||
| 15 | WP681414 | Screw, Ground (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 15 | 9750523 | Rod, Lock |
|
- |
