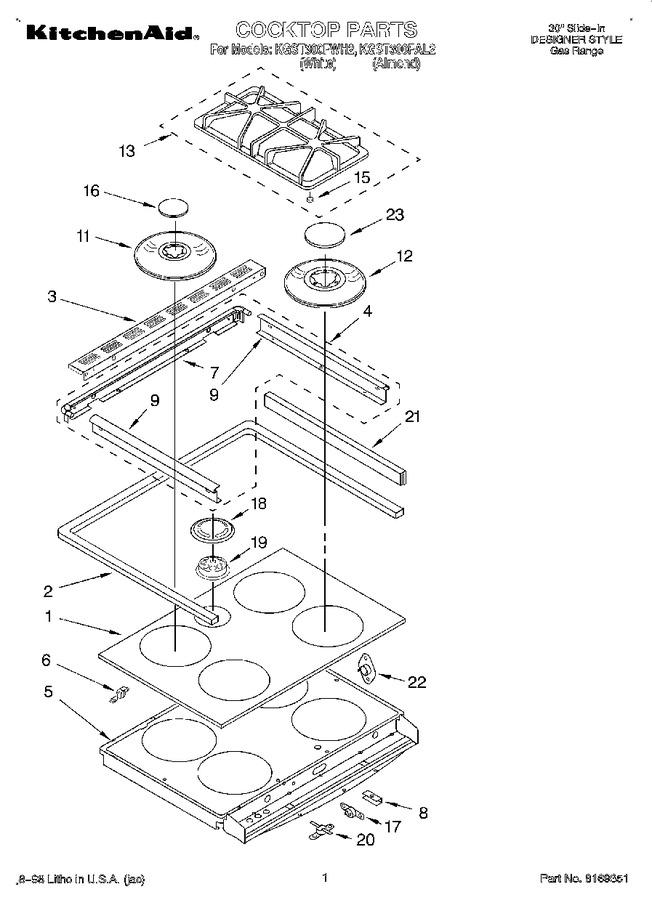

01 - Cooktop
02 - Control Panel
03 - Cooktop Burner
04 - Broiler & Oven Burner
05 - Door & Drawer
06 - Oven Chassis
07 - Rear Chassis, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752625CW | Cooktop, Ceran (white) |
|
- | |||||
| 1 | 9752625CT | Cooktop, Ceran (almond) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9752090PW | Vent, Rear (white) |
|
- | |||||
| 3 | 9752090PT | Vent, Rear (almond) |
|
- | |||||
| 4 | 9781832PW | Frame, Cooktop (white) |
|
- | |||||
| 4 | 9752003 | Frame, Cooktop (washer (2)) |
|
- | |||||
| 4 | 9781832PT | Frame, Cooktop (almond) |
|
- | |||||
| 5 | 9752632 | Support, Burner |
|
- | |||||
| 6 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 7 | 9781831PT | Trim, Rear (includes End Caps) (almond) |
|
- | |||||
| 7 | 9781831PW | Trim, Rear (includes End Caps) (white) |
|
- | |||||
| 8 | 9751871 | Screw (4) |
|
- | |||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 9 | 9781828PT | Trim, Side (almond) |
|
- | |||||
| 9 | 9781828PW | Trim, Side (white) |
|
- | |||||
| 11 | 9752624GB | Bezel, Small Lr-rf (black) |
|
- | |||||
| 11 | 9752624GS | Bezel, Small Lr-rf (gray) |
|
- | |||||
| 12 | 9752623GS | Bezel, Large Rr-lf (gary) |
|
- | |||||
| 12 | 9752623GB | Bezel, Large Rr-lf (black) |
|
- | |||||
| 13 | 9753219CB | Grates, Small (black) |
|
- | |||||
| 13 | 9753219CS | Grates, Small (gray) |
|
- | |||||
| 15 | 814323 | Pad, Grate (4) (Replaces: 9752638) |
|
Immediately | $ 10.28 | ||||
| 16 | 3185796 | Cap, Small (2) (black) |
|
- | |||||
| 16 | 3188975 | Cap, Small (2) (gray) |
|
- | |||||
| 17 | 9780265 | Screw (2) |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 18 | 9751271GW | Cap, Vent (white) |
|
- | |||||
| 18 | 9751271GB | Cap, Vent (almond Mdl.) |
|
- | |||||
| 19 | 9751366 | Cap, Vent |
|
- | |||||
| 20 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 21 | 9752034 | Gasket, Seal (2) |
|
- | |||||
| 22 | 9752006 | Bimetal |
|
$ 130.03 | |||||
| 23 | 3185793 | Cap, Large (2) (black) |
|
- | |||||
| 23 | 3188974 | Cap, Large (2) (gray) |
|
- |
