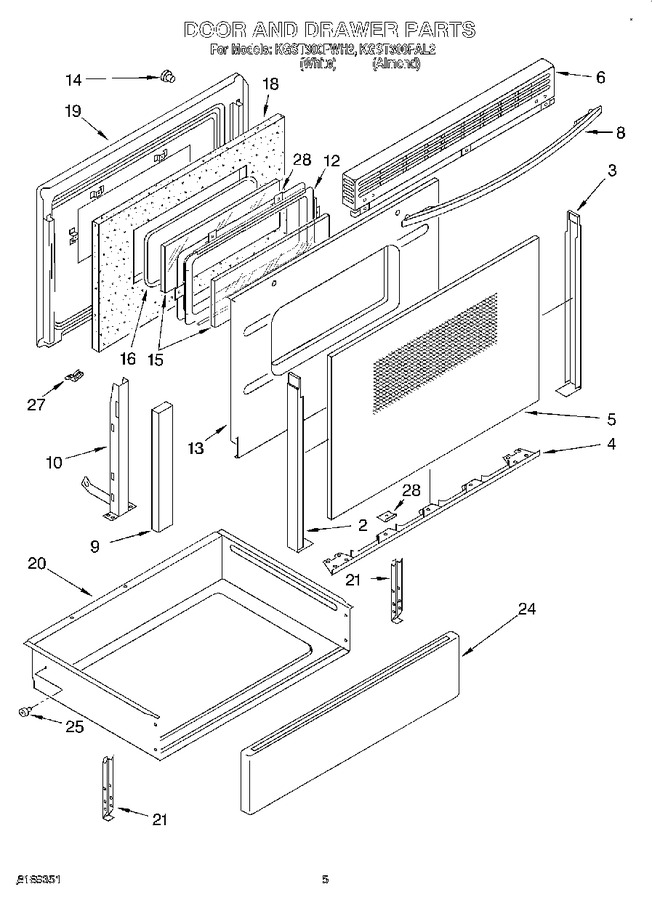

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9750631PW		Trim, Door-left (white)		Appelez-nous	-
2	9750631PT		Trim, Door-left (almond)		Appelez-nous	-
3	9750632PW		Trim, Door-right (white)		Appelez-nous	-
3	9750632PT		Trim, Door-right (almond)		Appelez-nous	-
4	9780265		Trim, Door Bottom (screw, 10 X 3/8)		Appelez-nous	-
4	9781209PT		Trim, Door Bottom (almond)		Appelez-nous	-
4	9781209PW		Trim, Door Bottom (white)		Appelez-nous	-
5	9781784PT		Glass, Door (almond)		Appelez-nous	-
5	9781784PW		Glass, Door (white)		Appelez-nous	-
6	9781659		Vent, Door (gasket, Door Vent)		Appelez-nous	-
6	9753498GT		Vent, Door (almond)		Appelez-nous	-
6	9753498GW		Vent, Door (white)		Appelez-nous	-
6	9781490		Vent, Door (seal, Door Vent Side)		Appelez-nous	-
8	WPW10001180		Handle, Door (screw (2))   (Replaces: 9781072)				$ 7.23
8	9780523PT		Handle, Door (almond)		Appelez-nous	-
8	9780523PW		Handle, Door (white)		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9750234)			Immediately	$ 208.67
10	WP90296		Clip   (Replaces: 90296)				$ 7.07
10	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
12	9781601		Frame, Window		Appelez-nous	-
13	9781588		Shield Door		Appelez-nous	-
14	238614		Bumper, Rubber   (Replaces: 9780771)				$ 72.68
15	WP9781654		Glass, Door (2)   (Replaces: 9781654)			Immediately	$ 106.18
16	9780271		Screw (2) 8 X 1/4		Appelez-nous	-
16	9781591		Seal, Glass		Appelez-nous	-
18	WPW10208653		Insulation   (Replaces: 9750231)			Immediately	$ 49.92
19	9781599GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
21	9780272		Screw (4) 10 X 1/2		Appelez-nous	-
24	9750168PW		Front, Drawer (white)		Appelez-nous	-
24	9750168PT		Front, Drawer (almond)		Appelez-nous	-
25	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
27	WP90296		Clip   (Replaces: 90296)				$ 7.07
27	9750676		Retainer, Panel		Appelez-nous	-
28	9781502		Retainer, Glass		Appelez-nous	-
28	9780265		Screw		Appelez-nous	-
