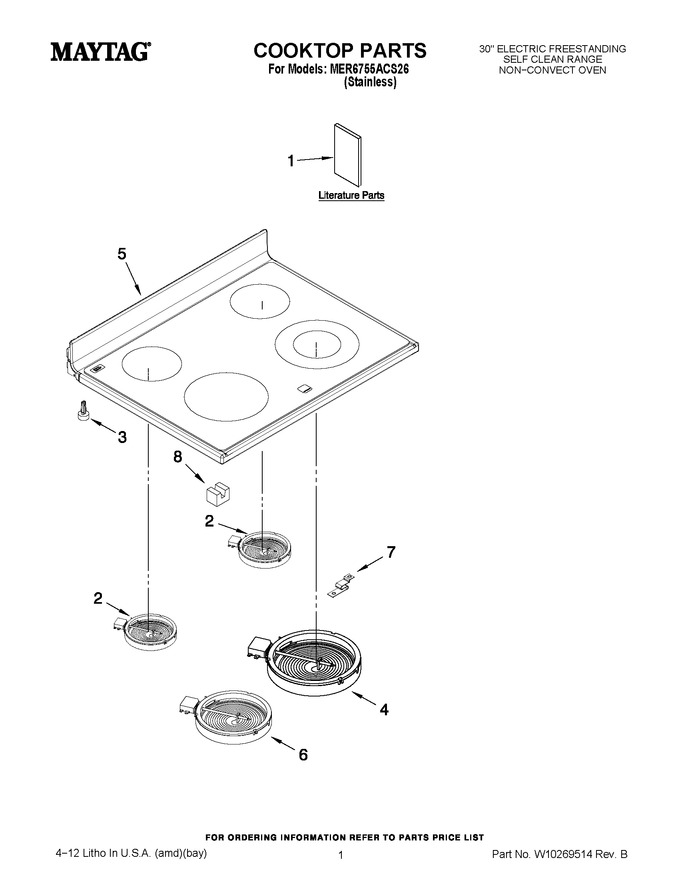

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Brochure, Tips (safe Cooking) |
|
- | |||||
| 1 | 8101P630-60 | Installation Instructions |
|
- | |||||
| 1 | 8113P741-60 | Owners Manual |
|
- | |||||
| 2 | W11171119 | Element (rr,lr) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 3 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 15.09 | ||||
| 4 | W10204679 | Element, (rf) |
|
$ 194.26 | |||||
| 5 | 5706X501-09 | Cooktop |
|
$ 459.27 | |||||
| 6 | WPW10187838 | Element (lf) (Replaces: W10187838) |
|
$ 324.07 | |||||
| 7 | 8004P093-60 | Support,element |
|
$ 10.61 | |||||
| 8 | 8255P412-60 | Block, Element Support |
|
$ 31.52 |
