View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

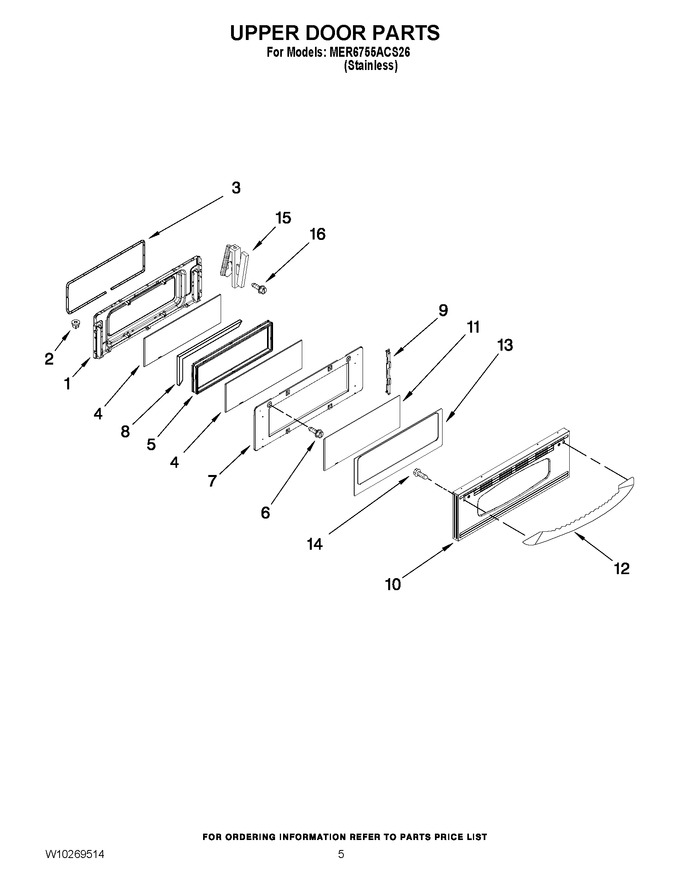

04 - Upper Door Parts
05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2402W248-19 | Lining, Door |
|
- | |||||
| 2 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 9.91 | ||||
| 3 | WP7201P091-60 | Gasket, Door (Replaces: 7201P091-60) |
|
$ 137.97 | |||||
| 4 | 7902P521-60 | Glass, Inner |
|
- | |||||
| 5 | 7907P034-60 | Frame, Glass |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 | ||||
| 7 | 3601F354-45 | Baffel, Door |
|
$ 66.15 | |||||
| 8 | 7002P488-60 | Insulation, Door |
|
- | |||||
| 9 | 3804F184-45 | Retainer, Glass |
|
- | |||||
| 10 | 7760P150-60 | Kit, Door Glass (incl. Foil Tape) |
|
- | |||||
| 11 | 7902P542-60 | Glass, Oven Door |
|
- | |||||
| 12 | 7701P526-60 | Handle, Door |
|
$ 129.23 | |||||
| 13 | 7902P751-60 | Glass, Outer Door |
|
$ 68.00 | |||||
| 14 | 7101P675-60 | Screw, Handle |
|
- | |||||
| 15 | 7106P148-60 | Hinge, Door |
|
- | |||||
| 16 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 |
