SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Upper Door Parts

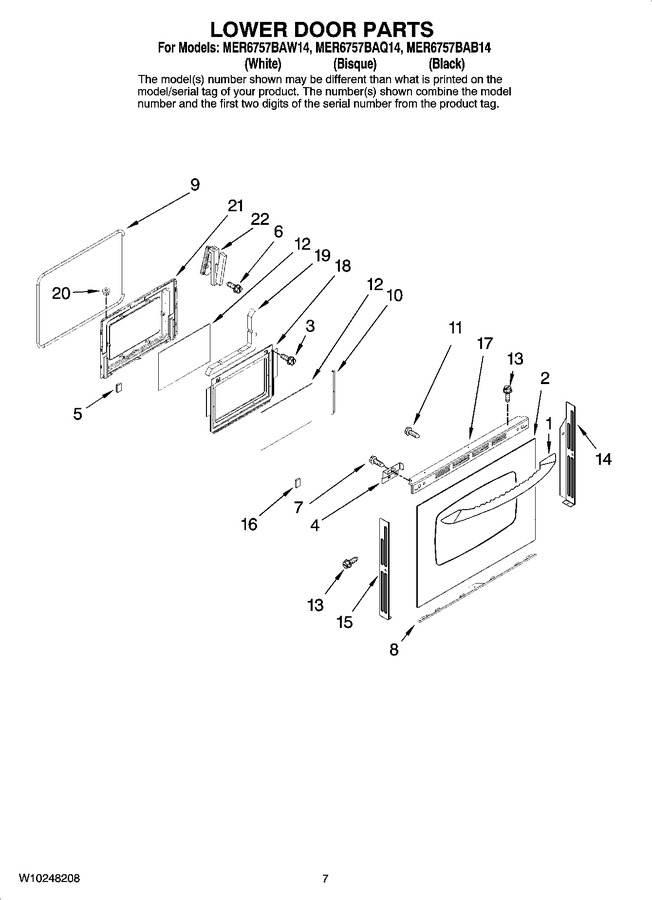

05 - Lower Door Parts


06 - Rack And Element Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011845		Handle, Door (white)		Appelez-nous	-
1	WP74011778		Handle, Door (bisque)   (Replaces: 74011778)				$ 226.31
1	WP74011767		Handle, Door (black)   (Replaces: 74011767)				$ 225.61
2	12002396		Kit, Door Glass (incl. Foil Tape) (bisque)				$ 193.14
2	12002395		Kit, Door Glass (incl. Foil Tape) (black)				$ 164.64
3	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
4	3801F831-45		Bracket, Handle (right)   (Replaces: 74009698)				$ 19.17
4	3801F832-45		Bracket, Handle (left)   (Replaces: 74009699)				$ 19.12
5	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
6	7101P208-60		Screw (10abx1/4p)				$ 11.92
7	WP74006515		Screw, Handle   (Replaces: 74006635)				$ 7.29
8	74009686		Support, Glass (black)		Appelez-nous	-
8	WP3807F708-71		Support, Glass (white)   (Replaces: 74009687)				$ 144.83
8	74009688		Support, Glass (bisque)		Appelez-nous	-
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 77.61
10	74011458		Bracket, Glass		Appelez-nous	-
11	W11233072		Screw   (Replaces: 74002979)			Immediately	$ 12.62
12	74003645		Glass, Inner (2)			Immediately	$ 162.53
13	WP98008545		Screw   (Replaces: 74009537)				$ 15.94
14	WP3608F116-71		Trim, Door (rt) (white)   (Replaces: 74009694)				$ 112.01
14	74009696		Trim, Door (rt) (bisque)		Appelez-nous	-
14	74009692		Trim, Door (rt) (black)		Appelez-nous	-
15	74009697		Trim, Door (lt) (bisque)		Appelez-nous	-
15	WP3608F117-71		Trim, Door (lt) (white)   (Replaces: 74009695)				$ 111.43
15	74009693		Trim, Door (lt) (black)		Appelez-nous	-
16	WP74004224		Tape   (Replaces: 74004224)				$ 10.53
17	3608F141-78		Trim, Door Top (bisque)		Appelez-nous	-
17	W10165726		Trim, Door Top (white)		Appelez-nous	-
17	W10165729		Trim, Door Top (black)		Appelez-nous	-
18	3601F373-51		Baffle, Door   (Replaces: 74011457)				$ 244.22
19	74003647		Insulation,door		Appelez-nous	-
20	WP7103P114-60		Nut, Snap (white)   (Replaces: 7103P039-60)				$ 9.89
20	WP74001574		Nut, Snap (black)   (Replaces: 74001574)			Immediately	$ 9.91
21	74011456		Lining, Door		Appelez-nous	-
22	74011142		Hinge, Door (2)			Immediately	$ 108.22

    View Diagram in Separate Window       Print Part List
