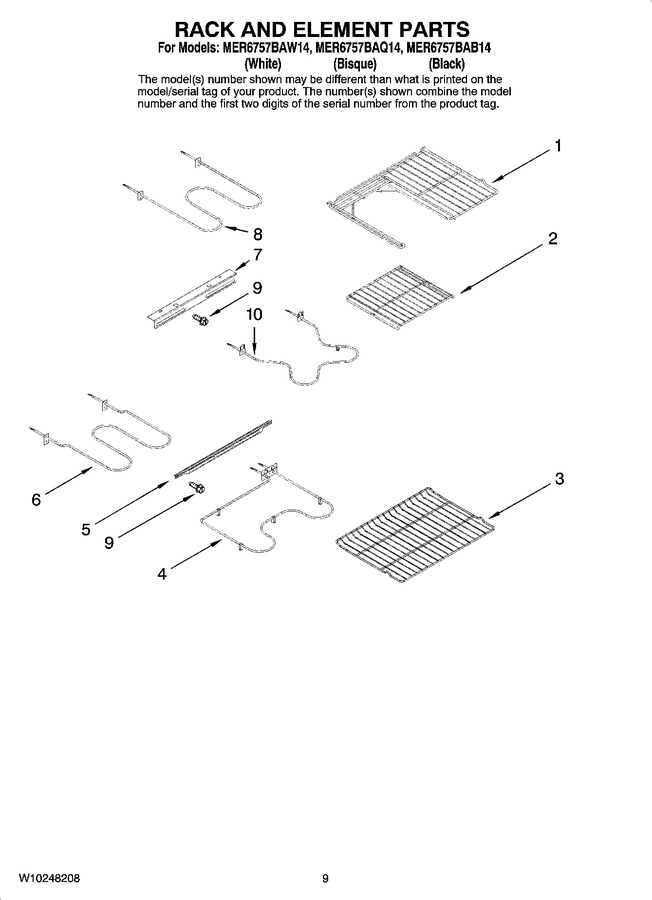

06 - Rack And Element Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009589		Rack, Half		Appelez-nous	-
2	74009587		Insert, Rack				$ 45.11
3	74011813		Rack, Lwr Oven (2)		Appelez-nous	-
4	WP7406P428-60		Element, Bake (lower)   (Replaces: 74004107)			Immediately	$ 47.32
5	74003386		Support, Broil Element		Appelez-nous	-
6	WPW10310249		Element, Broil   (Replaces: 74003041)			Immediately	$ 112.33
7	3807F749-45		Support, Broil Element (upper)				$ 8.74
8	W10201551		Element, Broil (upper)			Immediately	$ 47.97
9	W11233072		Screw   (Replaces: 74002979)			Immediately	$ 12.62
10	74004105		Element, Bake (upper)			Immediately	$ 100.74
NI	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 44.36
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)			Immediately	$ 51.34
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)			Immediately	$ 51.34
NI	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 80.69
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	799340		Paint, Bulk (1 Qt.) (black (uncut)		Appelez-nous	-
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	5171P953-60		Harness, Main Harness, Inf.sw.		Appelez-nous	-
NI	5717P910-60		Left		Appelez-nous	-
NI	5171P865-60		Right		Appelez-nous	-
NI	74009965		Harness, Side Mount Lock				$ 71.40
NI	5171P432-60		Harness, Sensor		Appelez-nous	-
NI	74009975		Harness, Door Position		Appelez-nous	-
NI	8019P026-60		Clip, Harness   (Replaces: 74006784)		Appelez-nous	-
NI	8019P013-60		Clip, Wire   (Replaces: 74006811)				$ 13.46
NI	WP4159193		Screw, Ground   (Replaces: 4159193)				$ 4.29
NI	WPW10281322		Blocks, Bare Wire Adapter (kit Of 3)   (Replaces: 74008298)				$ 7.61
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
NI	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
NI	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
