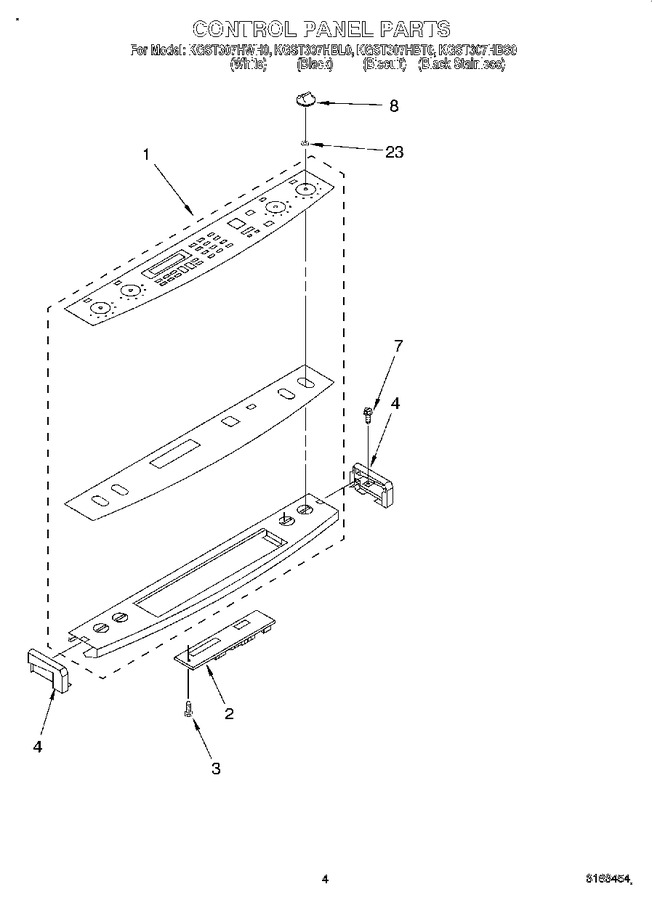

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754038CW		Console, Glass (white)		Appelez-nous	-
1	9754038CB		Console, Glass (black)		Appelez-nous	-
1	9754038CC		Console, Glass (biscuit)		Appelez-nous	-
2	3191106		Timer, Electronic		Appelez-nous	-
3	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
4	9751040FB		End Cap Right Hand (black)		Appelez-nous	-
4	9751040FW		End Cap (right Hand) (white)		Appelez-nous	-
4	9751039FC		End Cap (left Hand) (biscuit)		Appelez-nous	-
4	9751040FC		End Cap (right Hand) (biscuit)		Appelez-nous	-
4	9751039FW		(end Cap Left Hand) (white)		Appelez-nous	-
4	9751039FB		(end Cap Left Hand) (black)		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9751199FW		Knobs, Control (4) (white)				$ 19.89
8	W10405147		Knobs, Control (4) (black)   (Replaces: 9751199FF)				$ 87.20
8	9751199FC		Knobs, Control (4) (biscuit)				$ 5.71
23	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
