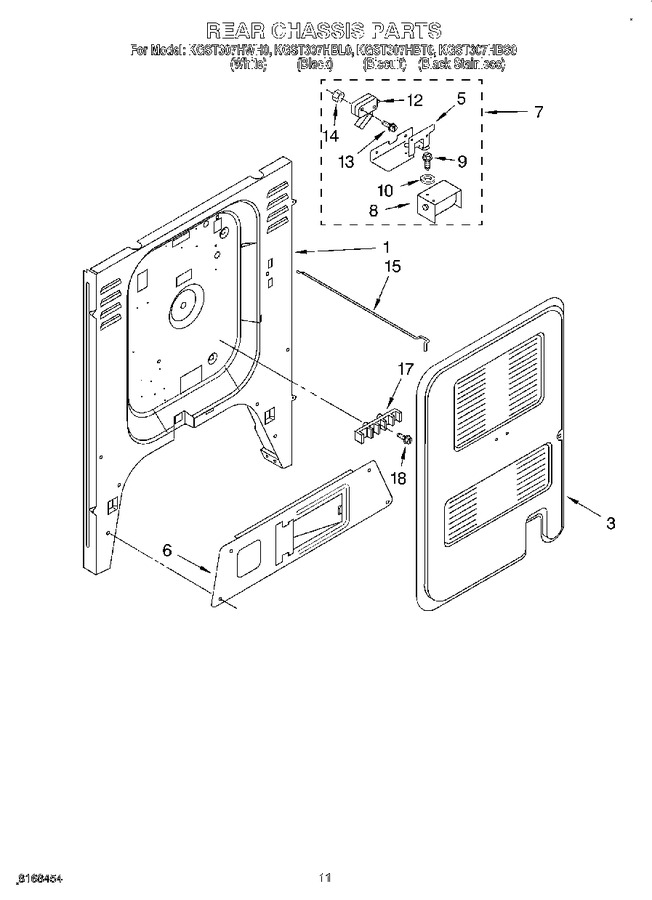

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751051		Back Panel, Chassis		Appelez-nous	-
3	9751353		Panel, Rear Cover		Appelez-nous	-
5	9751418		Bracket, Lock		Appelez-nous	-
6	9751500		Bracket, Regulator Valve		Appelez-nous	-
7	9751439		Oven Lock Assembly		Appelez-nous	-
8	9751590		Solenoid		Appelez-nous	-
9	422222		Screw, 10-32 X .31		Appelez-nous	-
10	424238		Washer		Appelez-nous	-
12	9751763		Switch, Interlock		Appelez-nous	-
13	9750887		Screw, 4-40 X 1		Appelez-nous	-
14	9750888		Nut (2)		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
18	9752769		Harness, Wire (dual Cooktop)		Appelez-nous	-
18	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
18	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
18	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
18	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
18	9781055		Cord, Power		Appelez-nous	-
18	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
18	WP98997		Clip   (Replaces: 98997)				$ 9.98
18	WPW10339879		Tie, Wire   (Replaces: 20082084)				$ 7.11
18	9753374		Harness, Wire (dual Oven Light)		Appelez-nous	-
18	WP681414		Screw, Ground   (Replaces: 690989)			Immediately	$ 7.07
18	98884		Screw, 10-16 X 1		Appelez-nous	-
18	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
18	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
18	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
18	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
18	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
18	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
18	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
18	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
18	242831		Wire (14 Ga. 200 C Red)				$ 342.23
18	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
18	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
18	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
18	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
18	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
18	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
18	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
18	4392899		Biscuit			Immediately	$ 23.81
18	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
18	261888		New Avocado		Appelez-nous	-
18	261886		Coffee		Appelez-nous	-
18	261890		Harvest Gold		Appelez-nous	-
18	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
18	350942		Primer (white)   (Replaces: 206922)				$ 80.69
18	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
18	978883		Almond (uncut)		Appelez-nous	-
18	261891		Harvest Gold (uncut)		Appelez-nous	-
18	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
18	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
18	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
18	9751164		Insulation, Wrap		Appelez-nous	-
18	9750221		Insulation, Rear		Appelez-nous	-
18	9751323		Insulation, Bottom		Appelez-nous	-
18	9753543		Glass Cleaner		Appelez-nous	-
18	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
18	9753604		(lp)		Appelez-nous	-
18	9752717		(natural)		Appelez-nous	-
18	261582		Grease		Appelez-nous	-
18	9751745		Anti-tip Kit				$ 19.35
18	9781639		Harness, Wire (main Harness)		Appelez-nous	-
18	9751708		Harness, Wire (neutral Gas)		Appelez-nous	-
18	9753808		Harness, Wire (spark Control)		Appelez-nous	-
18	9750376		Harness, Wire (oven Door)		Appelez-nous	-
18	9751868		Grommet, Harness		Appelez-nous	-
18	WA906B		Scraper   (Replaces: 3183488)			Immediately	$ 4.86
18	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
