01 - Cooktop Parts

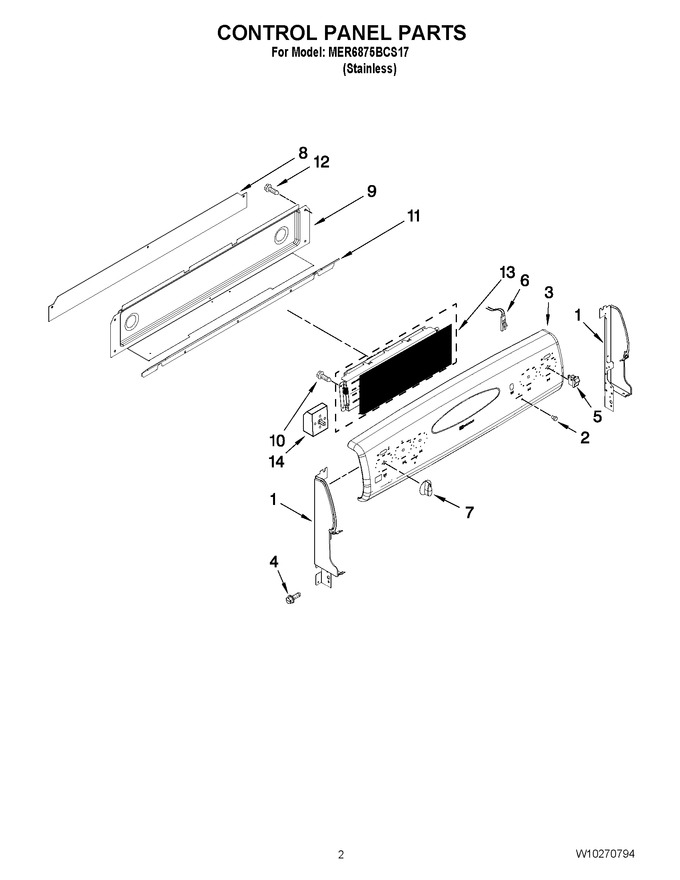

02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F733-70 | Support, Backguard (right) |
|
$ 27.86 | |||||
| 1 | 3807F734-70 | Support, Backguard (left) |
|
$ 18.35 | |||||
| 2 | WP7730P011-60 | Lens, Indicator (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 3 | 7704P114-60 | Panel, Control |
|
- | |||||
| 4 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 5 | 7403P985-60 | Switch, Rocker |
|
$ 82.20 | |||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 7 | 7737P232-60 | Knobs |
|
- | |||||
| 8 | 3604F387-51 | Shield, Sight |
|
$ 5.02 | |||||
| 9 | 4005F803-51 | Cover, Rear Wire |
|
$ 19.75 | |||||
| 10 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.47 | |||||
| 11 | 3604F405-51 | Shield, Wire |
|
$ 11.78 | |||||
| 12 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 13 | N/P | Control Assy (incl. Membrane) |
|
- | |||||
| 14 | WP74010824 | Switch, Infinite (rf (Replaces: 7450P011-60) |
|
Immediately | $ 100.92 | ||||
| 14 | WP74008940 | Switch, Infinite (lr,rr) (Replaces: 7403P877-60) |
|
Immediately | $ 125.54 | ||||
| 14 | 7450P095-60 | Switch, Infinite (lf) |
|
- |
