01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts

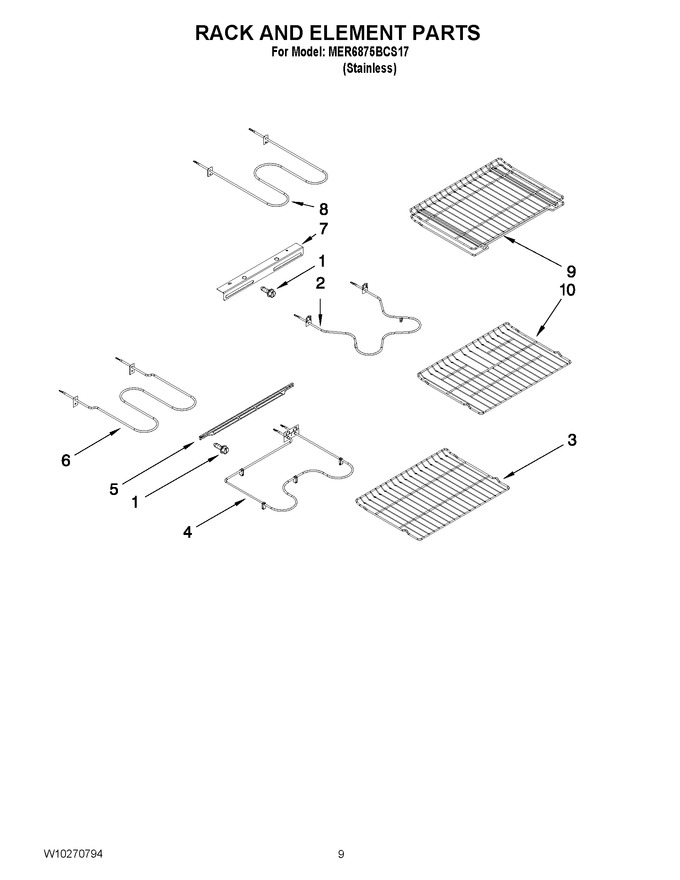

06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 2 | 74004105 | Element, Bake (upper) (Replaces: 7406P427-60) |
|
Immediately | $ 100.74 | ||||
| 3 | 7801P173-60 | Rack, Oven |
|
$ 55.72 | |||||
| 4 | WP7406P428-60 | Element, Bake Lower (Replaces: 7406P428-60) |
|
Immediately | $ 47.32 | ||||
| 5 | 3807F494-45 | Support, Broil Element |
|
- | |||||
| 6 | WPW10310249 | Element, Broil (Replaces: 7406P205-60) |
|
Immediately | $ 112.33 | ||||
| 7 | 3807F749-45 | Support, Broil Element (upper) |
|
$ 8.74 | |||||
| 8 | W10201551 | Element, Broil (upper) (Replaces: 7406P474-60) |
|
Immediately | $ 47.97 | ||||
| 9 | W10251904 | Rack, Telescoping |
|
- | |||||
| 10 | WPW10273816 | Rack, Oven (upper) (Replaces: 7801P159-60) |
|
$ 144.76 |
