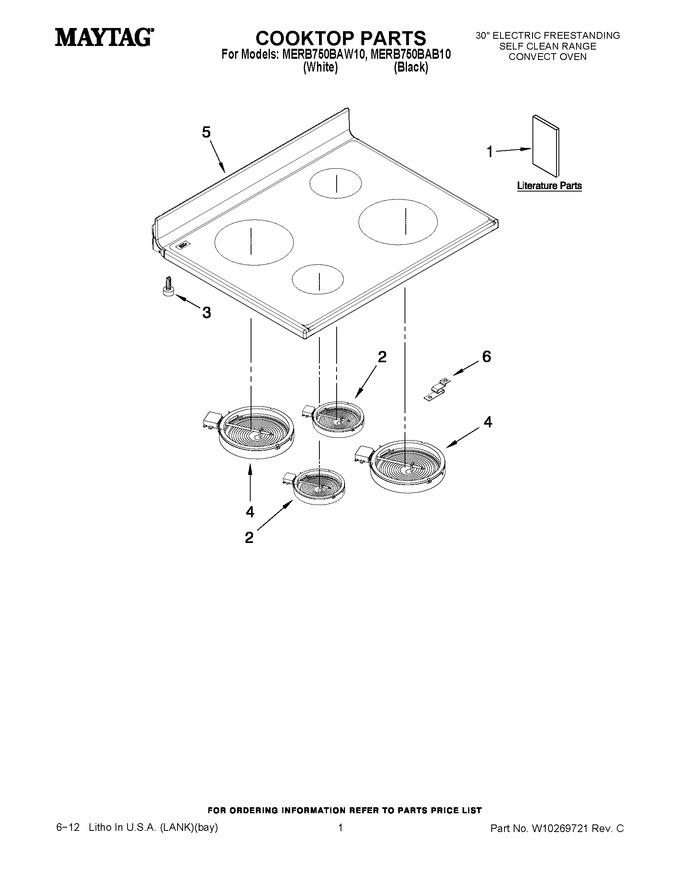

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Rack And Element Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Brochure, Tips Safe Cooking |
|
- | |||||
| 1 | 8101P556-60 | Installation Instructions |
|
- | |||||
| 1 | 8113P730-60 | Owners Manual |
|
- | |||||
| 2 | W10823711 | Element (lf,rr) (Replaces: 12002141) |
|
Immediately | $ 183.95 | ||||
| 3 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 15.09 | ||||
| 4 | W10823715 | Element (lr,rf) (Replaces: 7406P387-60) |
|
$ 315.14 | |||||
| 5 | 5706X615-09 | Cooktop (black) |
|
$ 419.83 | |||||
| 5 | 5706X570-81 | Cooktop (white) |
|
$ 438.54 | |||||
| 6 | 8004P093-60 | Support,element |
|
$ 10.61 |
