SELECT A DIAGRAM

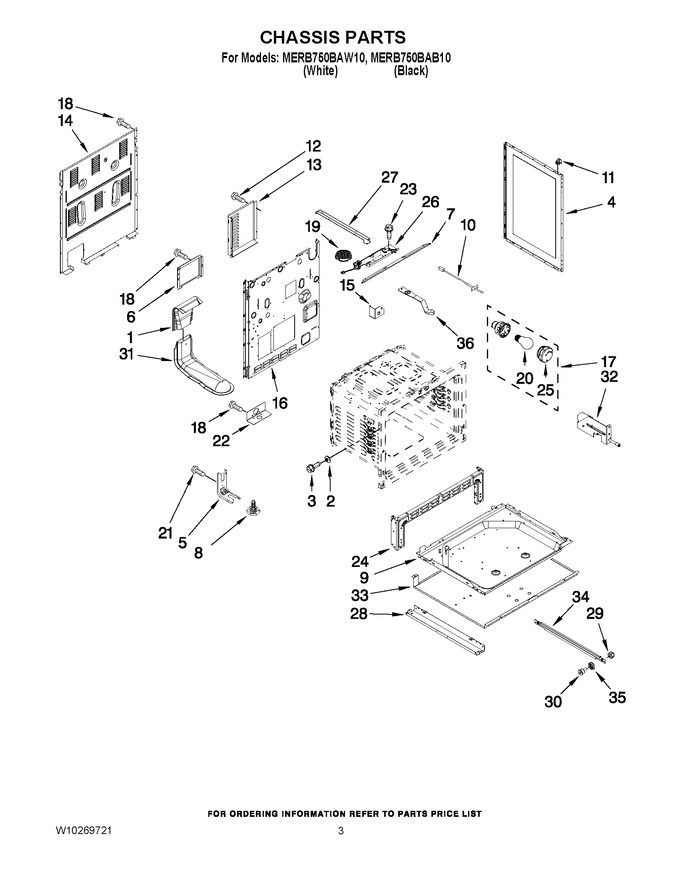

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Rack And Element Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P082-60		Extension, Vent		Appelez-nous	-
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.07
3	7101P618-60		Screw, Shoulder		Appelez-nous	-
4	2618F194-70		Panel, Side (black) (2)				$ 65.57
4	2618F194-71		Panel, Side (white) (2)		Appelez-nous	-
5	WP3801F656-51		Brack, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 4.69
6	4005F747-51		Cover, Access		Appelez-nous	-
7	3801F924-80		Bracket, Cooktop		Appelez-nous	-
8	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 25.30
9	3804F231-51		Retainer, Insul (bottom)				$ 147.45
10	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 39.55
11	8010P087-60		Spacer, Top (left)		Appelez-nous	-
11	8010P088-60		Spacer, Top (right)		Appelez-nous	-
12	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
13	4005F803-51		Cover, Rear Wire				$ 19.75
14	4005F717-51		Cover, Main Wire		Appelez-nous	-
15	3807F400-51		Support, Ov Rear		Appelez-nous	-
16	4002F348-51		Back, Main		Appelez-nous	-
17	WP74011278		Oven Light Assy   (Replaces: 7407P181-60)				$ 101.56
18	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
19	8034P008-60		Screen, Smoke				$ 25.43
20	8009		Bulb, Oven   (Replaces: W10132131)			Immediately	$ 16.80
21	WP7101P485-60		Screw   (Replaces: 7101P485-60)				$ 26.33
22	W10190166		Bracket, Power Supply   (Replaces: 3801F574-51)				$ 8.32
23	74003975		Screw   (Replaces: 7101P375-60)				$ 12.02
24	4020L026-80		Pedestal, Side				$ 27.52
25	WP9781049		Lens, Bulb   (Replaces: 209429)			Immediately	$ 71.93
26	8002P086-60		Latch, Door Lock		Appelez-nous	-
27	4011F458-51		Bottom, Burner Box (right)				$ 31.34
27	4011F459-51		Bottom, Burner Box (left)		Appelez-nous	-
28	4020F021-80		Pedestal, Front		Appelez-nous	-
29	7103P190-60		Nut, Lock (2)		Appelez-nous	-
30	7118P032-60		Shaft, Roller (2)		Appelez-nous	-
31	4006W129-45		Vent, Box		Appelez-nous	-
32	WP7450P108-60		Switch, Assy   (Replaces: W10201670)			Immediately	$ 138.24
33	W10177095		Shield, Warming Drawer		Appelez-nous	-
34	3406F032-51		Runner, Drawer (2)		Appelez-nous	-
35	WP74004078		Roller Drawer (2)   (Replaces: 8014P022-60)			Immediately	$ 10.70
36	8009P065-60		Lever, Lock		Appelez-nous	-
NI	7002P398-60		Insulation, Wrap		Appelez-nous	-
NI	7002P460-60		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
