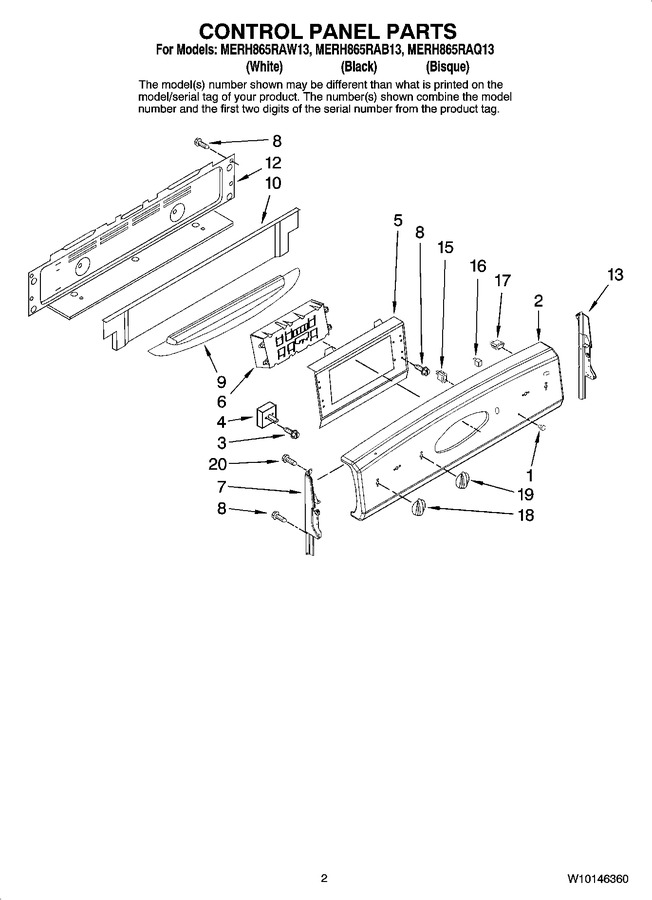

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7730P011-60 | Lens (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 2 | W10144688 | Panel, Backguard (stainless Steel) |
|
- | |||||
| 2 | W10129626 | Panel, Backguard (black) |
|
- | |||||
| 2 | W10129435 | Panel, Backguard (white) |
|
- | |||||
| 2 | W10129625 | Panel, Backguard (bisque) |
|
- | |||||
| 3 | WP7101P309-60 | Screw, Switch (10) (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 4 | WP74008940 | Switch, Infinte (low Heat) (Replaces: 74008940) |
|
Immediately | $ 125.54 | ||||
| 4 | WP7403P238-60 | Switch, Infinte 8`` (lf) (1) (Replaces: 7403P238-60) |
|
Immediately | $ 57.78 | ||||
| 4 | WP7403P239-60 | Switch, Infinte 6`` (rr/lr)(2) (Replaces: 7403P239-60) |
|
Immediately | $ 35.10 | ||||
| 4 | W10129627 | Switch, Infinte (dual (rf) (1)) |
|
$ 111.64 | |||||
| 5 | 74009052 | Bracket, Control |
|
- | |||||
| 6 | W10141422 | Control W/overlay (bisque) |
|
- | |||||
| 6 | W10141433 | Control W/overlay (black) |
|
- | |||||
| 6 | W10141425 | Control W/overlay (white) |
|
$ 353.39 | |||||
| 7 | 74009080 | End Cap (left Bisque) |
|
- | |||||
| 7 | 74009023 | End Cap (left Black) |
|
$ 31.24 | |||||
| 7 | 74009079 | End Cap (left White) |
|
- | |||||
| 8 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 9 | 74009202 | Shield, Heat Visor (black) |
|
- | |||||
| 9 | 74009204 | Shield, Heat Visor (bisque) |
|
$ 38.28 | |||||
| 9 | 74009203 | Shield, Heat Visor (white) |
|
- | |||||
| 10 | 74009444 | Shield, Vent |
|
- | |||||
| 12 | 74010935 | Cover, Rear Wire |
|
- | |||||
| 13 | 74009077 | End Cap (right White) |
|
- | |||||
| 13 | 74009022 | End Cap (right Black) |
|
- | |||||
| 13 | 74009078 | End Cap (right Bisque) |
|
- | |||||
| 15 | 74008939 | Switch, Rocker (bisque) |
|
- | |||||
| 15 | WP74010226 | Switch, Rocker (white) (Replaces: 74008938) |
|
$ 86.45 | |||||
| 15 | 7403P985-60 | Switch, Rocker (black) (Replaces: 74008937) |
|
$ 82.20 | |||||
| 16 | WP74004153 | Light, Indicator (Replaces: 74004153) |
|
Immediately | $ 8.02 | ||||
| 17 | WP74010226 | Switch, Dual (white) (Replaces: 74010226) |
|
$ 86.45 | |||||
| 17 | 7403P985-60 | Switch, Dual (black) (Replaces: 74010227) |
|
$ 82.20 | |||||
| 17 | 74010225 | Switch, Dual (bisque) |
|
- | |||||
| 18 | 74009188 | Knob (4) (white/chrome) |
|
$ 39.24 | |||||
| 18 | 74009187 | Knob (4) (black/chrome) |
|
$ 19.89 | |||||
| 18 | 74009189 | Knob (4) (bisque/chrome) |
|
- | |||||
| 19 | 74011358 | Knob, Warm (1) (black/chrome) |
|
- | |||||
| 19 | W10144686 | Knob, Warm (1) (bisque/chrome) |
|
- | |||||
| 19 | W10144687 | Knob, Warm (1) (white/chrome) |
|
- | |||||
| 20 | 74010929 | Screw (2) (white) |
|
- | |||||
| 20 | WP98008545 | Screw (2) (black) (Replaces: 74009537) |
|
$ 15.94 | |||||
| 20 | W11233072 | Screw (2) (bisque) (Replaces: 74010930) |
|
Immediately | $ 12.62 |
