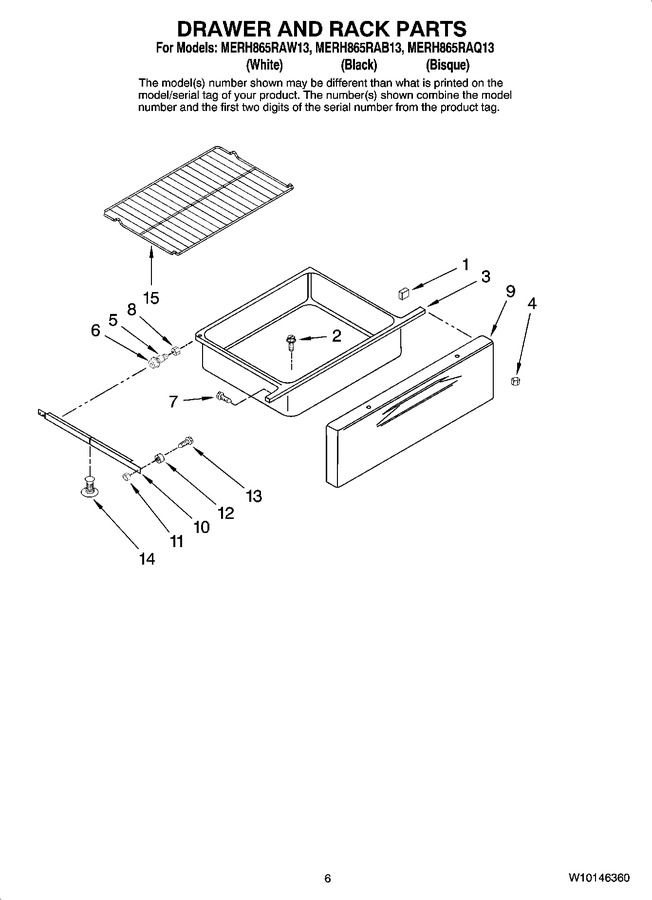

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8270P098-60		Tape, Double Sided				$ 5.02
2	WP7101P072-60		Screw (2)   (Replaces: 74004310)				$ 6.77
3	74008333		Drawer, Storage		Appelez-nous	-
4	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)				$ 4.00
5	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
6	74005231		Shaft, Roller				$ 9.23
7	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
8	WP488130		Nut   (Replaces: 7103P082-60)				$ 6.27
9	74008885		Panel, Drawer (black)		Appelez-nous	-
9	74008755		Panel, Drawer (white)		Appelez-nous	-
9	74008756		Panel, Drawer (bisque)		Appelez-nous	-
10	74008687		Runner, Drawer		Appelez-nous	-
11	74005230		Nut, Lock				$ 12.02
12	WP74004078		Roller, Drawer   (Replaces: 74004078)			Immediately	$ 10.70
13	74005231		Shaft, Roller				$ 9.23
14	74008688		Stop, Drawer				$ 5.02
15	WP74008763		Rack, Oven   (Replaces: 74008763)				$ 192.14
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
NI	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 44.36
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)			Immediately	$ 51.34
NI	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 80.69
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	4392900		Paint, Bulk (1 Qt.) (biscuit (uncut)		Appelez-nous	-
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	3191048		Cleaner, Glass		Appelez-nous	-
NI	W10129620		Harness, Wire (cooktop Right)		Appelez-nous	-
NI	5171P864-60		Harness, Wire (cooktop Left)		Appelez-nous	-
NI	W10129432		Harness, Wire (burner Box)		Appelez-nous	-
NI	W10129624		Harness, Wire (main)		Appelez-nous	-
NI	8019P013-60		Clip, Wire   (Replaces: 74006811)				$ 13.46
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 4.29
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	242828		Wire, Black 12 Ga. 150 C		Appelez-nous	-
NI	242821		Wire, Blue 14 Ga. 150 C		Appelez-nous	-
NI	242822		Wire, Brown 14 Ga. 150 C		Appelez-nous	-
NI	242830		Wire, Brown 14 Ga. 200 C		Appelez-nous	-
NI	242823		Wire, Green 14 Ga. 150 C		Appelez-nous	-
NI	242824		Wire, Orange 14 Ga. 150 C		Appelez-nous	-
NI	242825		Wire, Red 14 Ga. 150 C		Appelez-nous	-
NI	242831		Wire, Red 14 Ga. 200 C				$ 342.23
NI	242827		Wire, Yellow 14 Ga. 150 C		Appelez-nous	-
NI	253886		Wire		Appelez-nous	-
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
NI	261582		Grease		Appelez-nous	-
NI	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
NI	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
