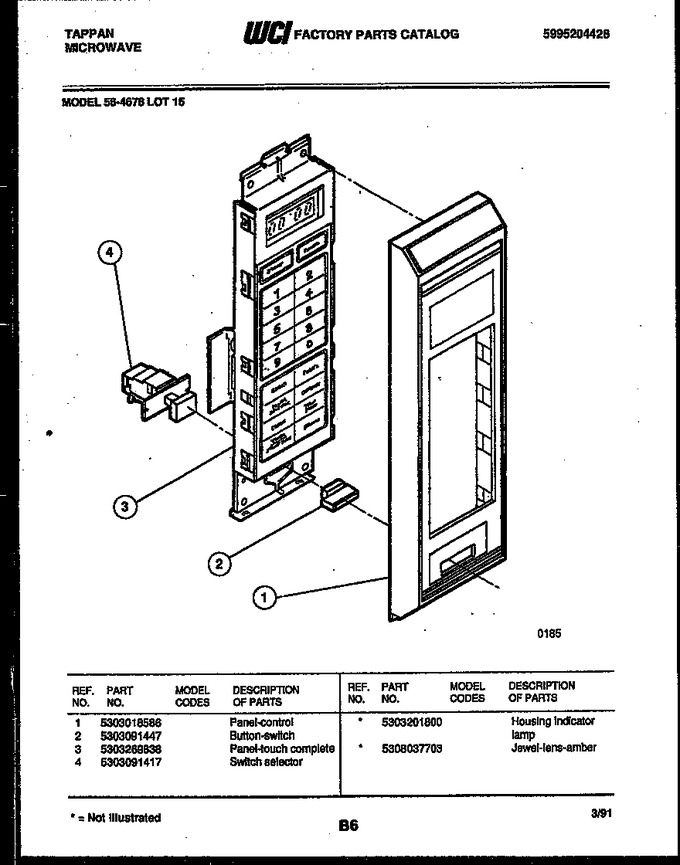

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018586 | Panel Control |
|
- | |||||
| 2 | 5303091447 | Button-switch |
|
- | |||||
| 3 | 5303269838 | Panel-touch Complete |
|
- | |||||
| 4 | 5303091417 | Switch-selector |
|
- | |||||
| *47033 | 5308037703 | Jewel Lens-amber |
|
- | |||||
| *47033 | 5303201800 | Housing Indicator Lamp |
|
- |
