SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts


04 - Functional Parts


05 - Wrapper And Body Parts

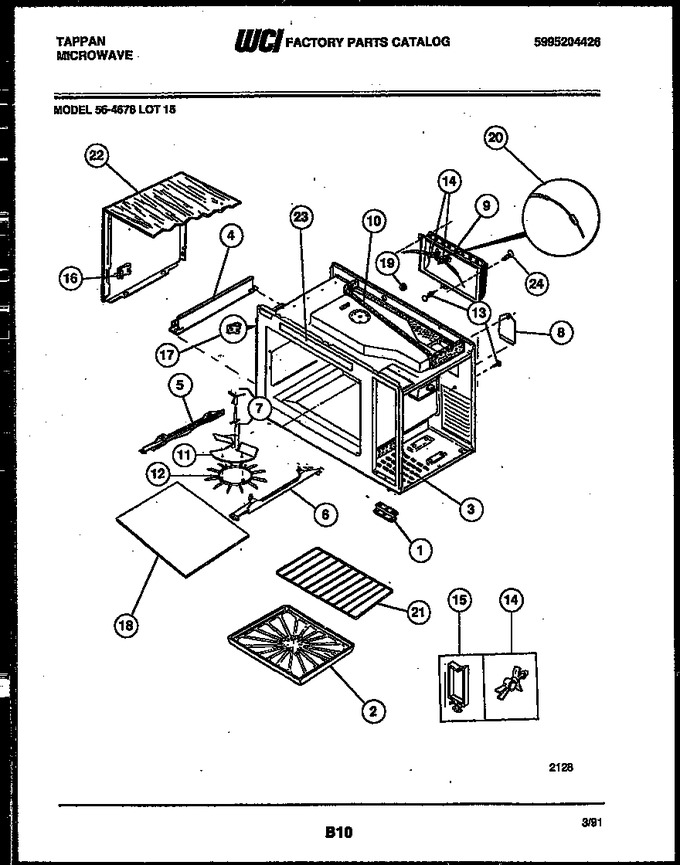

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303011555		Bracket-control Panel Support		Appelez-nous	-
2	5303011698		Tray, Oven		Appelez-nous	-
3	5303269830		Channel-base-rh		Appelez-nous	-
4	5303011773		Channel Base, Lh		Appelez-nous	-
5	5303011776		Channel-stirrer Glass Support-lh		Appelez-nous	-
6	5303011777		Channel-stirrer Glass Support-rh		Appelez-nous	-
7	5303922010		Collar-stirrer-(includes Support, Collar And Washer)		Appelez-nous	-
8	5303212775		Cover-light		Appelez-nous	-
9	5303269958		Duct-air, Exhaust		Appelez-nous	-
10	5308037640		Seal-foam		Appelez-nous	-
11	5303269835		Fan-stirrer		Appelez-nous	-
12	5303269836		Fan-air Vane		Appelez-nous	-
13	5303091555		Plug, Button, White, (2)		Appelez-nous	-
14	5303212788		Support-thermal Protector (2)		Appelez-nous	-
15	5308037677		Clip, Wires, (3)		Appelez-nous	-
16	5303012322		Clip, Wrapper, (2)		Appelez-nous	-
17	3203010		Clip, Hinge, (4)   (Replaces: 5303012323)				$ 14.89
18	5303012681		Cover-stirrer, Glass		Appelez-nous	-
19	5303212795		Grommet, Split		Appelez-nous	-
20	5303212800		Harness-fire Protector		Appelez-nous	-
21	5303206085		Rack-oven		Appelez-nous	-
22	5303269842		Wrapper-wood Grain		Appelez-nous	-
23	5303018849		Label Cooking Guide		Appelez-nous	-
24	5303271024		Screw-tamper Proof (2)		Appelez-nous	-
*47039	5303091100		Screw-wrapper (25)		Appelez-nous	-
*47040	5303269841		Shield-oven Light		Appelez-nous	-
