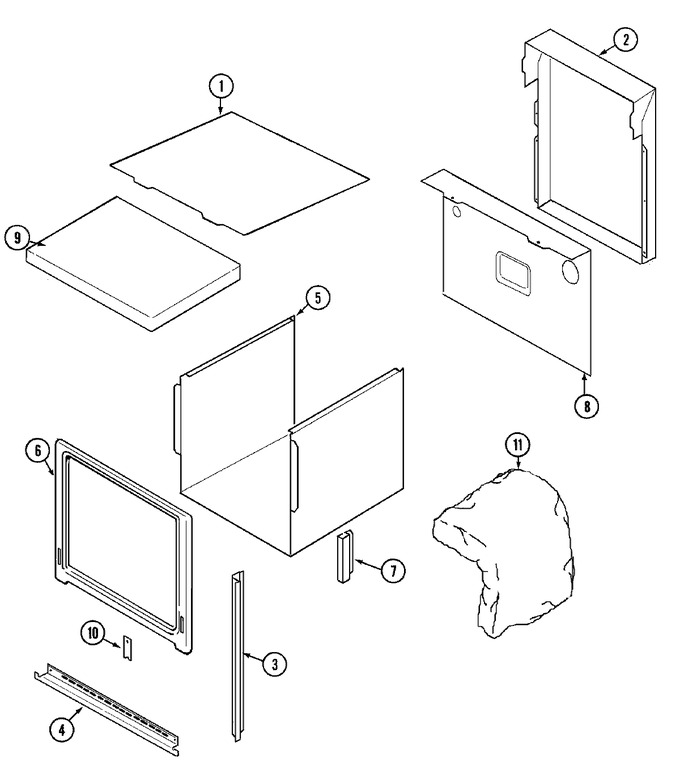

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 1 | 74006819 | Panel, Top (outer) | 10 |
|
- | ||||
| 2 | 71001813 | Cover, Main Back | 10 |
|
- | ||||
| 3 | 74005622 | Trim, Side (blk) | 12 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 71001952 | Trim, Side (rt/blk) | 10 |
|
- | ||||
| 3 | 71001951 | Trim, Side (lt/blk) | 10 |
|
- | ||||
| 4 | 74005626 | Trim, Oven (lwr-blk) | 10 |
|
- | ||||
| 4 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 5 | 74005627 | Panel (side-btm-side) | 10 |
|
- | ||||
| 6 | 71003185 | Frame, Oven | 10 |
|
- | ||||
| 7 | WP74008015 | Receptacle, Hinge Assy. (Replaces: 71001828) | 10 |
|
$ 225.36 | ||||
| 8 | 74004616 | Panel, Back (inr) | 10 |
|
- | ||||
| 9 | 71002227 | Insulation (top-back) | 10 |
|
- | ||||
| 9 | 71001963 | Insulation (btm) | 10 |
|
- | ||||
| 10 | 71001812 | Plate, Hinge Trap | 10 |
|
- | ||||
| 11 | 71001960 | Insulation (wrap) | 10 |
|
- | ||||
| 12 | W10759523 | Screw (blk) (Replaces: 71002264) | 10 |
|
$ 5.71 |
