01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

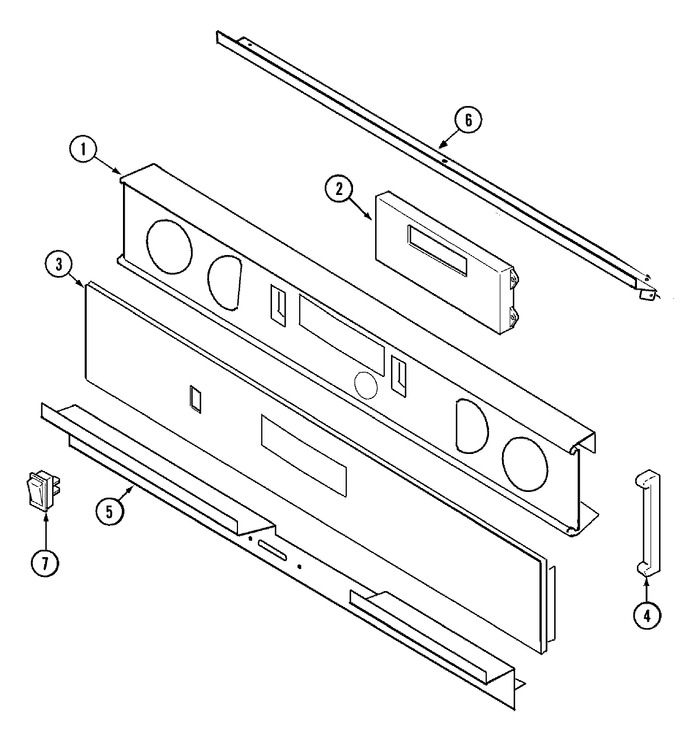

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488234 | Screw (no.8-1/4``) (Replaces: 71002147) | 10 |
|
$ 6.07 | ||||
| 1 | 74004706 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | 74004714 | Clock | 10 |
|
- | ||||
| 2 | Y705143 | Insulator | 10 |
|
- | ||||
| 3 | 74006725 | Switch, Membrane Asy (blk) | 10 |
|
- | ||||
| 4 | 71001794 | End Cap, Panel (blk) | 10 |
|
- | ||||
| 5 | 71001946 | Trim, Control Panel (blk) | 10 |
|
- | ||||
| 6 | 74006817 | Support, Top Control | 10 |
|
- | ||||
| 7 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 8 | 74004702 | Harness, Lock Switch | 10 |
|
- | ||||
| 8 | 74004701 | Harness, Senor/lock | 10 |
|
- | ||||
| 8 | 74004699 | Harness, Main | 10 |
|
- | ||||
| 9 | 74005597 | Manual, Use & Care | 10 |
|
- | ||||
| 9 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- |
