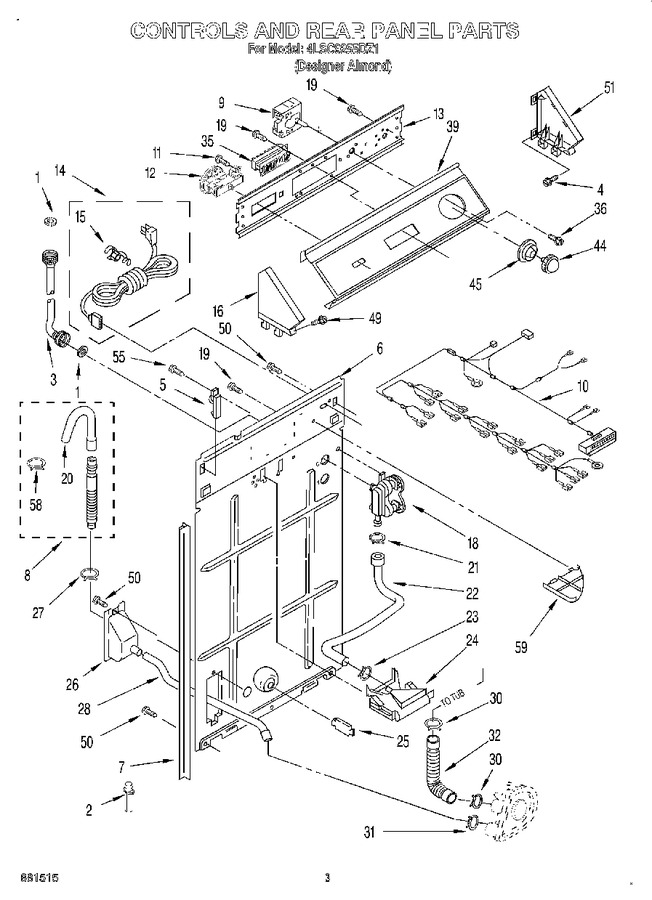

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 6.93 | |||||
| 2 | 3363920A | Adapter-drain Hose (Replaces: 3363920) |
|
$ 7.91 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) ((blue Coupler)) (Replaces: 3949368) |
|
Immediately | $ 21.68 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) ((red Coupler)) (Replaces: 3949369) |
|
Immediately | $ 21.68 | ||||
| 4 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 33.20 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 54.81 | ||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 9 | 3946446 | Timer, Control (60 Hz.) (motor Not A Service Part) |
|
- | |||||
| 10 | 3950855 | Wiring, Harness (for Detail See Page 6.) |
|
- | |||||
| 11 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 6.75 | |||||
| 12 | 3357480 | Switch, Water Level |
|
- | |||||
| 13 | 3361414 | Bracket, Control |
|
- | |||||
| 14 | 3353850 | Cord, Power |
|
- | |||||
| 15 | 3949468 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 3358529 | Cap, End (l.h.) |
|
- | |||||
| 18 | 285874 | Valve, Water Mixing (Replaces: 3360393) |
|
$ 183.31 | |||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 20 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 83.88 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.56 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3361809) |
|
Immediately | $ 43.34 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 28 | 3359816 | Hose To Pump Drain |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 7.03 | ||||
| 31 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 10.38 | |||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3950340) |
|
Immediately | $ 24.01 | ||||
| 35 | 3363675 | Switch, Touch-pad (7) |
|
- | |||||
| 36 | WP356418 | Screw, Timer Mounting (10-32 X 1) (2) (Replaces: 96435) |
|
$ 7.13 | |||||
| 39 | 3952345 | Panel, Console |
|
- | |||||
| 44 | WP3364293 | Knob, Timer (Replaces: 3364293) |
|
Immediately | $ 53.51 | ||||
| 45 | 280193 | Dial, Timer (Replaces: 3951054) |
|
$ 51.36 | |||||
| 49 | WP388326 | Screw, 8-18 (2) (panel To Top) (Replaces: 388326) |
|
$ 7.30 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 51 | 3358514 | Cap , End (r.h.) |
|
- | |||||
| 55 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 6.80 | |||||
| 59 | 3348424 | Sheild, Suds |
|
- |
