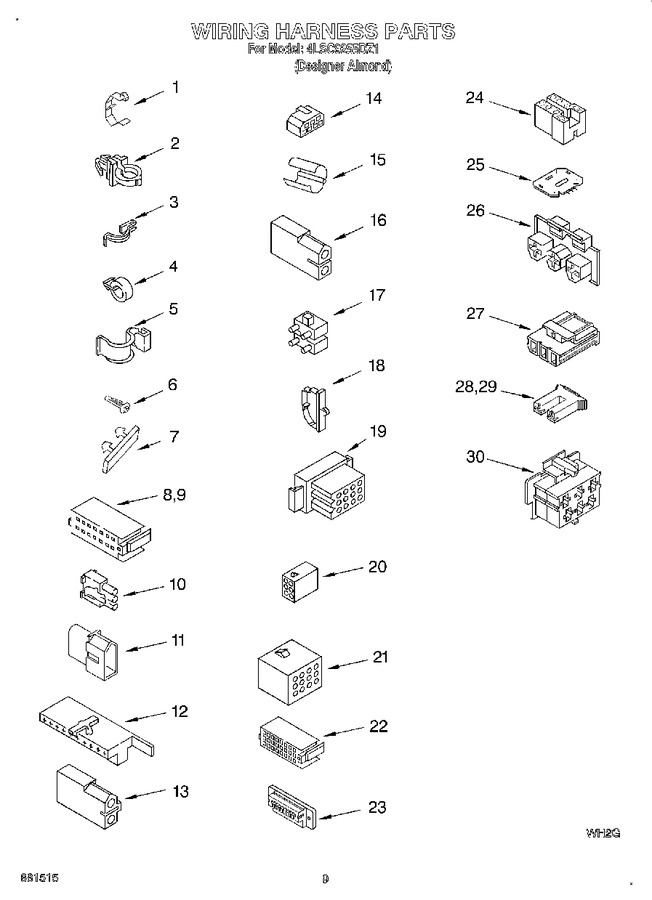

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3349557		Clip, Harness		Appelez-nous	-
2	388498		Clip, Harness		Appelez-nous	-
3	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
4	8559320		Clip, Harness   (Replaces: 3352501)				$ 41.27
5	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
6	3390496		Clip, Harness		Appelez-nous	-
7	389379		Retainer, (suds Models)				$ 5.84
8	352090		Timer, Block Disconnect (white)		Appelez-nous	-
9	W10876590		Timer, Block Disconnect (black)   (Replaces: 352089)				$ 11.48
10	94613		Term Or		Appelez-nous	-
10	WP62889		Receptacle, Terminal (3-way) (lid Switch) (use Term   (Replaces: 62889)				$ 6.88
10	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
11	94613		Term		Appelez-nous	-
11	353424		Plug, Terminal (3-way) (power Cord) (use				$ 18.95
12	WP62505		Block, Disconnect (motor 2 Speed) (use   (Replaces: 62505)				$ 21.35
12	352088		Term)				$ 5.83
13	94613		Term Or		Appelez-nous	-
13	3348075		Block, Disconnect (motor 3 Speed) (use		Appelez-nous	-
13	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
14	352088		Term)				$ 5.83
14	3347243		Block, Disconnect (use		Appelez-nous	-
15	63523		Protector				$ 169.95
16	717252		Connector (2-way) (use Term. 94614)		Appelez-nous	-
17	387566		Plug, Terminal (4-way) (power Cord) (use M3 Screws)		Appelez-nous	-
18	3352944		Clip, Harness		Appelez-nous	-
19	3390423		Block, Disconnect (12-way) (timer) (use Term. 94613)		Appelez-nous	-
20	3347730		Receptacle, (6-way) (use Term. 94613)		Appelez-nous	-
21	388818		Plug, Terminal (12-way) (use Term. 94613 Or 94614)		Appelez-nous	-
22	3369366		Timer, Block Disconnect (black) (amp) (use Term. 3369365)		Appelez-nous	-
23	3349494		Connector, Etc		Appelez-nous	-
24	60687		Connector, Relay (use Term. 308569)		Appelez-nous	-
25	3407125		Control, Etc		Appelez-nous	-
26	WP2172937		Connector (t.p.a.) (3-circuit) (lid Switch) (use   (Replaces: 3948617)				$ 18.72
26	3948620		Term.		Appelez-nous	-
26	3948619		Term Or		Appelez-nous	-
27	3360056		Connector (t.p.a) (3-circuit) (pressure Switch) (use				$ 14.35
27	3948620		Term.		Appelez-nous	-
27	3948619		Term Or		Appelez-nous	-
28	3354925		Block, Connector (cold Valve) (use		Appelez-nous	-
28	693217		Term		Appelez-nous	-
29	3354926		Block, Connector (hot Valve) (use		Appelez-nous	-
29	693217		Term		Appelez-nous	-
30	3948615		Connector (t.p.a.) (6-circuit) (temp. Switch) (use Term. 3948619 Or 3948620.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
