SELECT A DIAGRAM

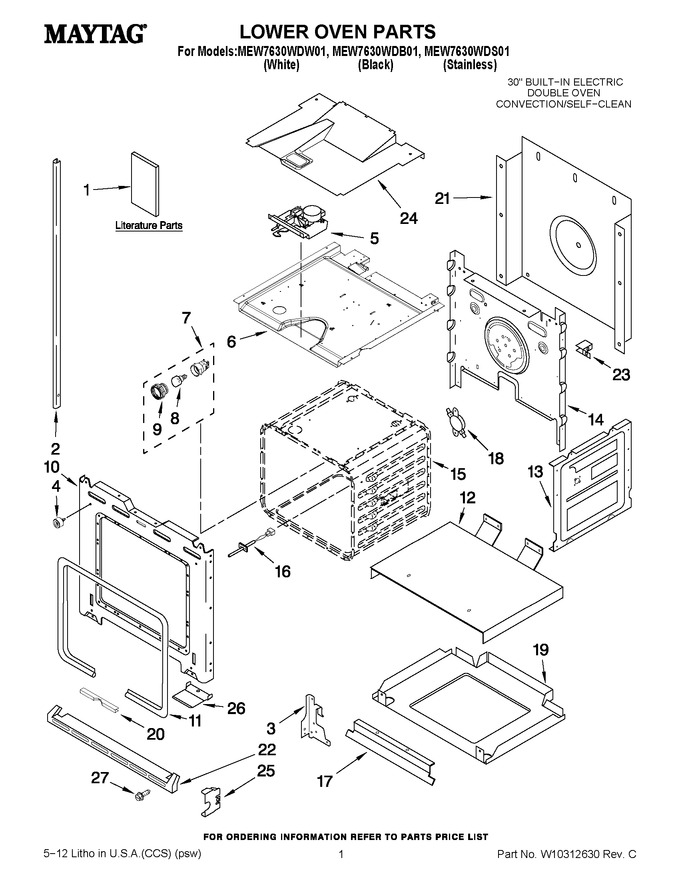

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185219		Tech Sheet		Appelez-nous	-
1	9762761		Bi-lingual Tips, Safe Cook (english)		Appelez-nous	-
1	W10065852		Bi-lingual Tips, Safe Cook (french)		Appelez-nous	-
1	W10075750		Instr, Installer		Appelez-nous	-
1	4457288		Install- Instr Bottom Trim		Appelez-nous	-
1	W10276986		Use & Care Guide		Appelez-nous	-
1	W10192049		Installation Instructions		Appelez-nous	-
2	WPW10144985		Trim, Side Right (stainless)   (Replaces: W10144985)				$ 203.59
2	W10278487		Trim, Side Right (black)				$ 73.33
2	W10278489		Trim, Side Right (white)		Appelez-nous	-
2	WPW10144986		Trim, Side Left (stainless)   (Replaces: W10144986)				$ 202.78
2	W10278488		Trim, Side Left (black)		Appelez-nous	-
2	W10278490		Trim, Side Left (white)		Appelez-nous	-
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 103.82
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 107.47
4	W10105790		Bumper, Door				$ 6.35
5	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 259.79
6	8303099		Top, Chassis				$ 70.97
7	WPW10307114		Assembly, Oven Light   (Replaces: W10009940)			Immediately	$ 99.44
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	W10169756		Lens, Light				$ 36.16
10	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 301.62
10	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
10	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
11	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 62.78
12	4451478		Support, Insulation				$ 54.10
13	W10782197		Side, Chassis   (Replaces: 4455641)				$ 129.16
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
14	W10161110		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
16	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 86.25
17	9760677		Deflector, Vent				$ 155.46
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
18	WP9759242		Fuse, Thermal   (Replaces: 9759242)			Immediately	$ 77.01
19	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
19	9759713		Base, Chassis				$ 100.19
20	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
20	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
21	WP4451747		Cover, Back   (Replaces: 4451747)				$ 128.63
21	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
22	W10166934		Trim, Bottom Vent (stainless)		Appelez-nous	-
22	W10278493		Trim, Bottom Vent (black)				$ 65.74
22	W10278494		Trim, Bottom Vent (white)				$ 39.83
23	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
23	4449845		Support, Bracket		Appelez-nous	-
24	8302349		Divider, Center Vent				$ 142.26
25	4452152		Bracket, Mounting Bottom Vent Trim				$ 30.15
26	W10145009		Deflector, Vent Box   (Replaces: 4452489)				$ 69.95
27	WP3400805		Screwv (ss Only)   (Replaces: 3400805)				$ 6.47
27	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
NI	4450365		Insulation, Back				$ 70.95
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 107.01

    View Diagram in Separate Window       Print Part List
