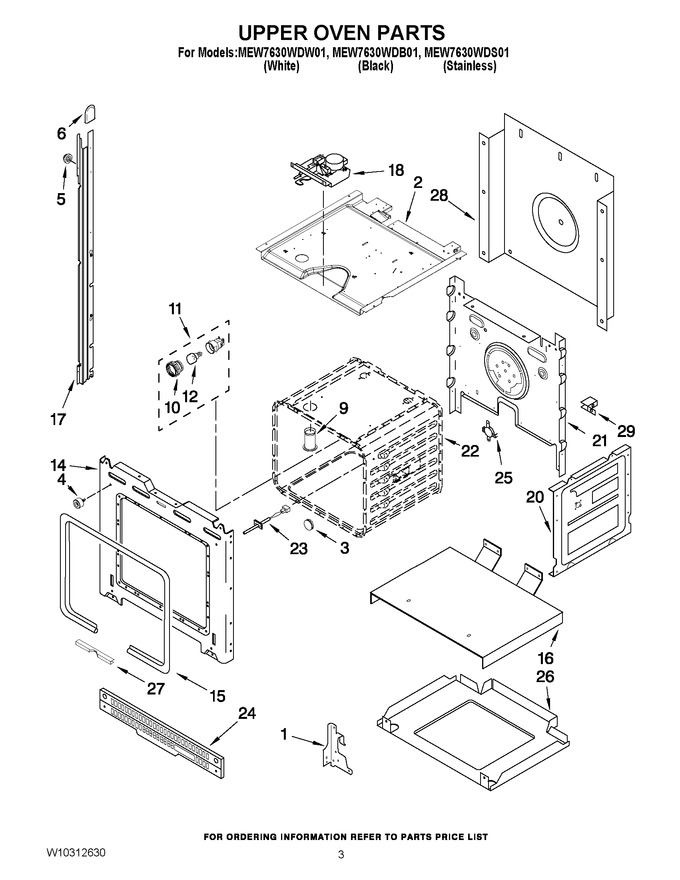

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4455606 | Reciever, Hinge (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 1 | WP4455605 | Reciever, Hinge (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 2 | 8303099 | Chassis, Top |
|
$ 70.97 | |||||
| 3 | 4448982 | Plug, Button |
|
- | |||||
| 4 | W10105790 | Bumper, Door |
|
$ 6.35 | |||||
| 5 | WP4448444 | Grommet, Mounting Rail (Replaces: 4448444) |
|
$ 6.73 | |||||
| 6 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 10 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 11 | WPW10307114 | Assembly, Oven Light (Replaces: W10009940) |
|
Immediately | $ 99.44 | ||||
| 12 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 14 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 14 | WPW10115831 | Frame, Front (Replaces: W10115831) |
|
$ 301.62 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 62.78 | ||||
| 16 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 16 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 17 | 814373 | Rail, Side (right) (Replaces: 4450581) |
|
$ 203.87 | |||||
| 17 | 814374 | Rail, Side (left) (Replaces: 4450582) |
|
$ 204.20 | |||||
| 18 | WPW10195934 | Latch, Motorized (Replaces: W10195934) |
|
Immediately | $ 259.79 | ||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 129.16 | |||||
| 21 | W10161110 | Back, Chassis |
|
- | |||||
| 21 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 22 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 23 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 86.25 | ||||
| 23 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 24 | 4452267 | Trim, Center Vent |
|
$ 67.43 | |||||
| 25 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 25 | WP9759242 | Thermostat (Replaces: 9759242) |
|
Immediately | $ 77.01 | ||||
| 26 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 26 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 27 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 27 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 7.97 | |||||
| 28 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 28 | WP4451747 | Cover, Back (Replaces: 4451747) |
|
$ 128.63 | |||||
| 29 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 29 | 4449845 | Support, Bracket |
|
- | |||||
| NI | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| NI | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 107.01 |
