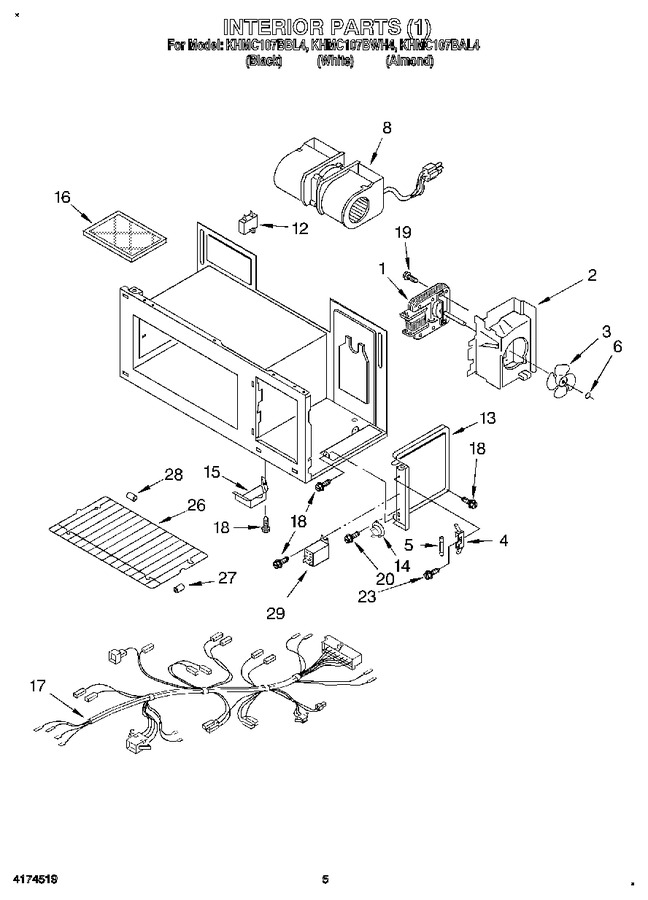

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358784 | Motor, Fan |
|
$ 95.50 | |||||
| 2 | 4358564 | Guide Suction |
|
- | |||||
| 3 | 4358379 | Blower Fan |
|
- | |||||
| 4 | 4358785 | Holder, Fuse |
|
- | |||||
| 5 | 4358704 | Fuse |
|
- | |||||
| 6 | 4358055 | Push Nut |
|
$ 4.83 | |||||
| 8 | 4358960 | Motor, Ventilation |
|
$ 179.50 | |||||
| 12 | 4158376 | Motor Condenser |
|
- | |||||
| 13 | 4358536 | Guide Air |
|
- | |||||
| 14 | 4158368 | Base Thermostat |
|
- | |||||
| 15 | 4358791 | Cover, Connector |
|
- | |||||
| 16 | 4358792 | Filter, Charcoal |
|
- | |||||
| 17 | 4359192 | Lead Wire |
|
- | |||||
| 18 | 4358192 | Screw |
|
- | |||||
| 19 | 4358190 | Screw |
|
- | |||||
| 20 | 4358376 | Screw |
|
- | |||||
| 23 | 4358064 | Screw |
|
- | |||||
| 26 | 4359020 | Rack |
|
- | |||||
| 27 | 4358956 | Bushing |
|
- | |||||
| 28 | 4358957 | Bushing |
|
- | |||||
| 29 | 4359191 | A.c. Relay |
|
- | |||||
| LIT4358596 | Guide, Use & Care |
|
- | ||||||
| LIT4359183 | Tech Sheet |
|
- | ||||||
| LIT4359021 | Cookbook |
|
- | ||||||
| LIT4358519 | Instructions, Installation |
|
- |
