Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4358794 Board, Latch Appelez-nous -
2 4392027 Micro Switch   (Replaces: 4158940) Special Order $ 138.41

3 4392027 Micro Switch   (Replaces: 4358269) Special Order $ 138.41

4 4392027 Micro Switch   (Replaces: 4158941) Special Order $ 138.41

5 4392027 Micro Switch   (Replaces: 4358267) Special Order $ 138.41

6 4358795 Lever Monitor Appelez-nous -
7 4358271 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

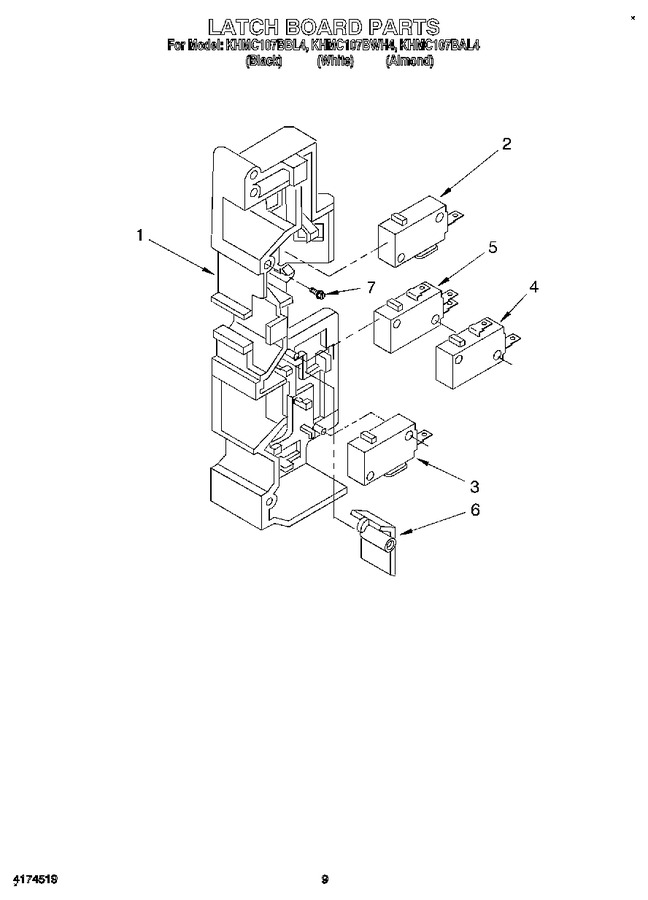

Diagram for KHMC107BBL4
