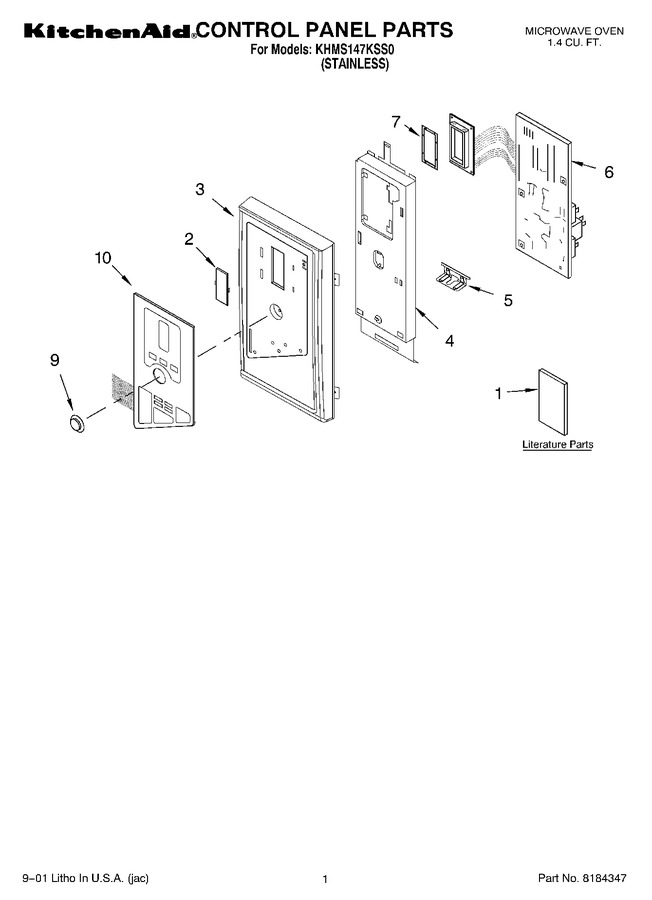

01 - Control Panel, Literature
02 - Door
03 - Interior And Ventilation
04 - Air Flow
05 - Magnetron And Turntable
06 - Cabinet And Installation, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8183932 | Literature (u & C Guide) |
|
- | |||||
| 1 | LIT8184322 | Literature (tech Sheet) |
|
- | |||||
| 1 | LIT8169442 | Literature (cook Guide Label) |
|
- | |||||
| 1 | LIT8183731 | Literature (instructions, Installation) |
|
- | |||||
| 2 | 8169521 | Lens |
|
- | |||||
| 3 | 8184325 | Panel, Control |
|
- | |||||
| 4 | 8169525 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8169526 | Pcb Assembly |
|
- | |||||
| 7 | 8169555 | Gasket, Silicone |
|
- | |||||
| 9 | 8184305 | Knob |
|
- | |||||
| 10 | 8183874 | Switch, Membrane |
|
- |
