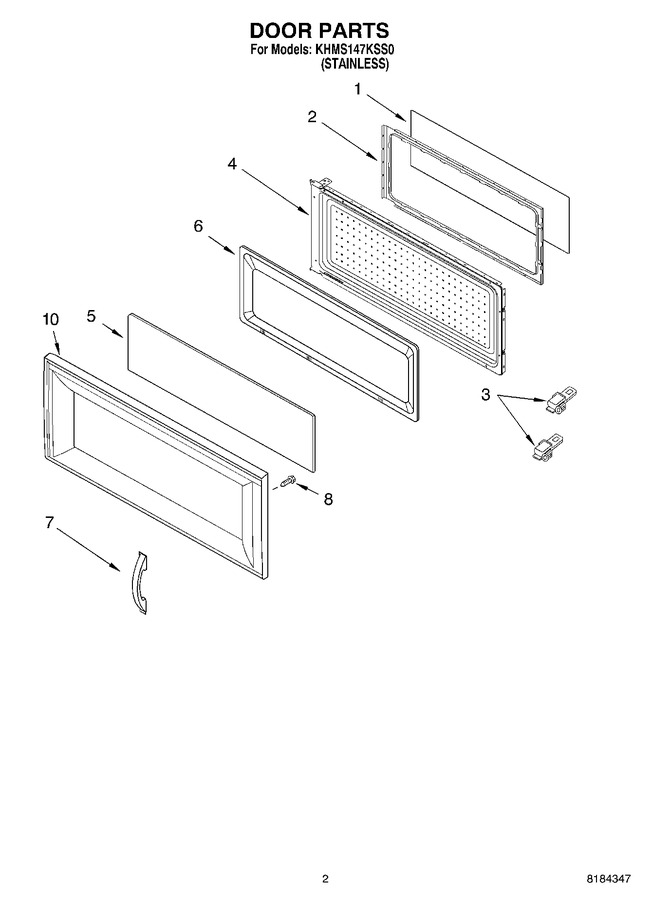

02 - Door
03 - Interior And Ventilation
04 - Air Flow
05 - Magnetron And Turntable
06 - Cabinet And Installation, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4393870 | Film, Back |
|
- | |||||
| 2 | 8169545 | Frame, Inner |
|
$ 67.40 | |||||
| 3 | 4393913 | Latch, Door |
|
$ 54.19 | |||||
| 4 | 8169460 | Body, Door |
|
- | |||||
| 5 | 4393725 | Glass, Outer |
|
$ 34.91 | |||||
| 6 | 8169735 | Panel, Door |
|
- | |||||
| 7 | 8184320 | Handle, Door |
|
- | |||||
| 8 | 4393833 | Screw |
|
$ 6.79 | |||||
| 10 | 8184319 | Frame, Outer |
|
- |
