SELECT A DIAGRAM

01 - Control Panel Parts


02 - Door Parts

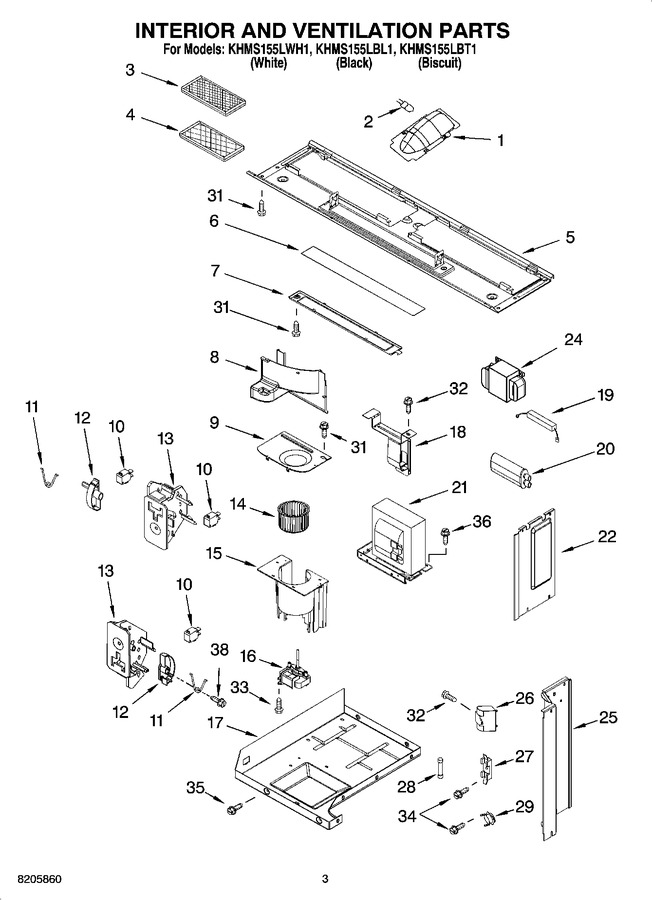

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8169652		Reflector, Lamp				$ 62.22
2	8204670		Halogen Lamp   (Replaces: 8185188)			Immediately	$ 25.94
3	6800		Filter, Charcoal   (Replaces: 8169645)			Immediately	$ 26.06
4	6802A		Filter, Grease   (Replaces: 4393790)			Immediately	$ 28.96
5	8184307		Plate, Bottom		Appelez-nous	-
6	8169564		Glass, Lamp				$ 31.64
7	8184308		Holder, Glass		Appelez-nous	-
8	8184309		Guide, Air (magnetron)		Appelez-nous	-
9	8183823		Cover, Fan		Appelez-nous	-
10	W10211972		Switch, Micro   (Replaces: 4393697)			Immediately	$ 47.16
11	8169438		Spring, Interlock				$ 10.69
12	8183824		Plate, Cam				$ 5.70
13	8205572		Support, Interlock (2)   (Replaces: 4393595)				$ 6.26
14	8183825		Wheel, Fan				$ 33.72
15	8184310		Housing, Fan		Appelez-nous	-
16	8183826		Motor, Fan		Appelez-nous	-
17	8183827		Chassis		Appelez-nous	-
18	8184311		Holder, Capacitor		Appelez-nous	-
19	W11256462		Rectifier, H.v.   (Replaces: 4393600)			Immediately	$ 29.88
20	W10850446		Capacitor, H.v.   (Replaces: 8205553)				$ 167.89
21	8185086		Transformer, H.v.		Appelez-nous	-
22	4393705		Plate, Side (r)		Appelez-nous	-
24	8185003		Transformer, L.v.		Appelez-nous	-
25	8169470		Plate, Side (l)		Appelez-nous	-
26	4393709		Capacitor				$ 8.10
27	8184312		Holder, Fuse		Appelez-nous	-
28	W11707984		Fuse   (Replaces: 4393308)			Immediately	$ 41.27
29	4393710		Thermostat		Appelez-nous	-
31	4393835		Screw				$ 11.83
32	4393472		Screw		Appelez-nous	-
33	4393833		Screw				$ 6.79
34	8169478		Screw		Appelez-nous	-
35	8169475		Screw				$ 6.64
36	4393836		Screw		Appelez-nous	-
38	8169479		Screw   (Replaces: 8169477)				$ 6.26
