SELECT A DIAGRAM
01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts

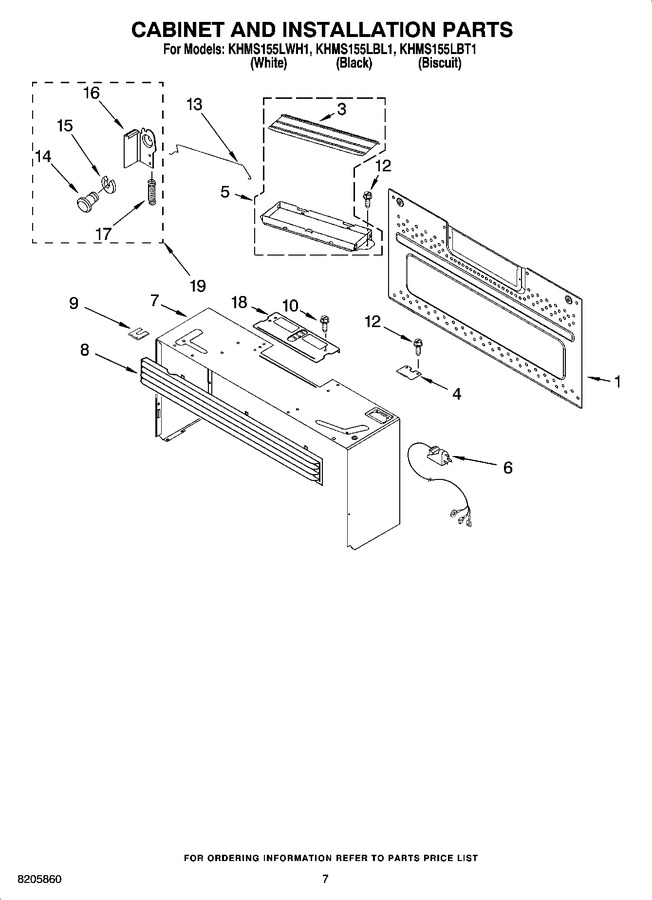

06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8206174 | Plate, Mounting (Replaces: 8205400) |
|
$ 30.99 | |||||
| 3 | W10843943 | Door, Damper (Replaces: 4393713) |
|
Immediately | $ 65.74 | ||||
| 4 | 8184313 | Lid, Power Cord |
|
- | |||||
| 5 | W10843943 | Damper Assembly (Replaces: 8205558) |
|
Immediately | $ 65.74 | ||||
| 6 | 8169432 | Cord, Power |
|
$ 150.69 | |||||
| 7 | 8184315 | Case, Outer (biscuit) |
|
- | |||||
| 7 | 8169660 | Case, Outer (white) |
|
- | |||||
| 7 | 8169661 | Case, Outer (black) |
|
- | |||||
| 8 | 8184146 | Grille, Vent (biscuit) |
|
$ 52.73 | |||||
| 8 | 8184608 | Grille, Vent (black) |
|
Immediately | $ 62.40 | ||||
| 8 | 8184148 | Grille, Vent (white) |
|
$ 56.75 | |||||
| 9 | 8206334 | Grille, Holder (Replaces: 4393795) |
|
$ 6.47 | |||||
| 10 | WP4393834 | Screw (Replaces: 4393834) |
|
$ 6.47 | |||||
| 12 | 4393828 | Screw |
|
- | |||||
| 13 | 8169318 | Rod |
|
- | |||||
| 14 | 8169319 | Latch, Pivot |
|
- | |||||
| 15 | 8169320 | E-ring |
|
- | |||||
| 16 | 8185033 | Catch |
|
- | |||||
| 17 | 8169374 | Spring |
|
- | |||||
| 18 | 8169697 | Plate, Damper |
|
- | |||||
| 19 | 8169479 | Screw, Grille |
|
$ 6.26 | |||||
| 19 | 8185033 | Catch Assembly |
|
- | |||||
| 19 | N/A | Miscellaneous |
|
- | |||||
| 19 | 8169659 | Installation, Hardware |
|
- | |||||
| 19 | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| 19 | 8183985 | Upper Cab Template |
|
- | |||||
| 19 | 8183743 | Wall Template |
|
- | |||||
| 19 | 8205393 | Rack |
|
- | |||||
| 19 | 8205635 | Ground Wire Assy. |
|
- | |||||
| 19 | 8205847 | H.v. Wire Assy |
|
- |
