SELECT A DIAGRAM

Diagram for 01 - Control Panel, Literature
01 - Control Panel, Literature

Diagram for 02 - Door
02 - Door

Diagram for 03 - Interior And Ventilation
03 - Interior And Ventilation

Diagram for 04 - Air Flow
04 - Air Flow

Diagram for 05 - Magnetron And Turntable
05 - Magnetron And Turntable

Diagram for 06 - Cabinet And Installation
06 - Cabinet And Installation


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4393870 Film, Back Appelez-nous -
2 8169545 Frame, Inner Special Order $ 67.40

3 4393913 Latch, Door Special Order $ 54.19

4 8169546 Body, Door (biscuit) Appelez-nous -
4 8169653 Body, Door (white) Special Order $ 138.16

4 8169460 Body, Door (black) Appelez-nous -
5 4393725 Glass, Outer (clear (green Tint)) Special Order $ 34.91

5 8183704 Glass, Outer (clear) Appelez-nous -
6 8169736 Panel, Door (biscuit) Appelez-nous -
6 8169734 Panel, Door (white) Appelez-nous -
6 8169735 Panel, Door (black) Appelez-nous -
7 8169738 Handle, Door (black) In-Stock Immediately $ 168.85

7 8169737 Handle, Door (white) Appelez-nous -
7 8169739 Handle, Door (biscuit) Appelez-nous -
7 8184264 Handel, Door (stainless) Special Order $ 143.47

8 4393833 Screw Special Order $ 6.79

10 8184744 Frame, Outer (biscuit) Special Order $ 116.05

10 8184149 Frame, Outer (white) Special Order $ 121.93

10 8184592 Frame, Outer (black) Special Order $ 121.30

10 8184319 Frame, Outer (stainless) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

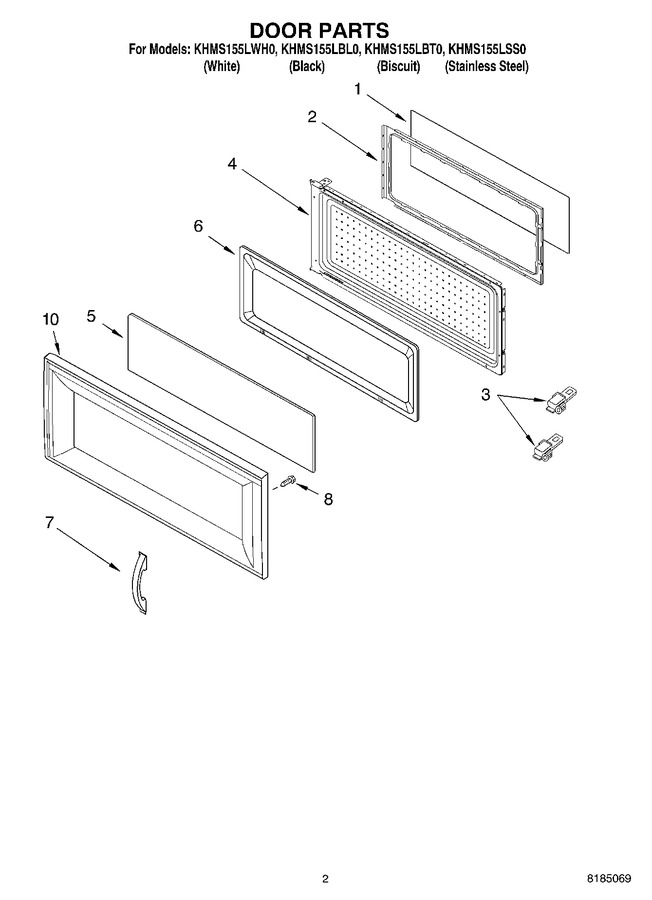

Diagram for KHMS155LBT0
