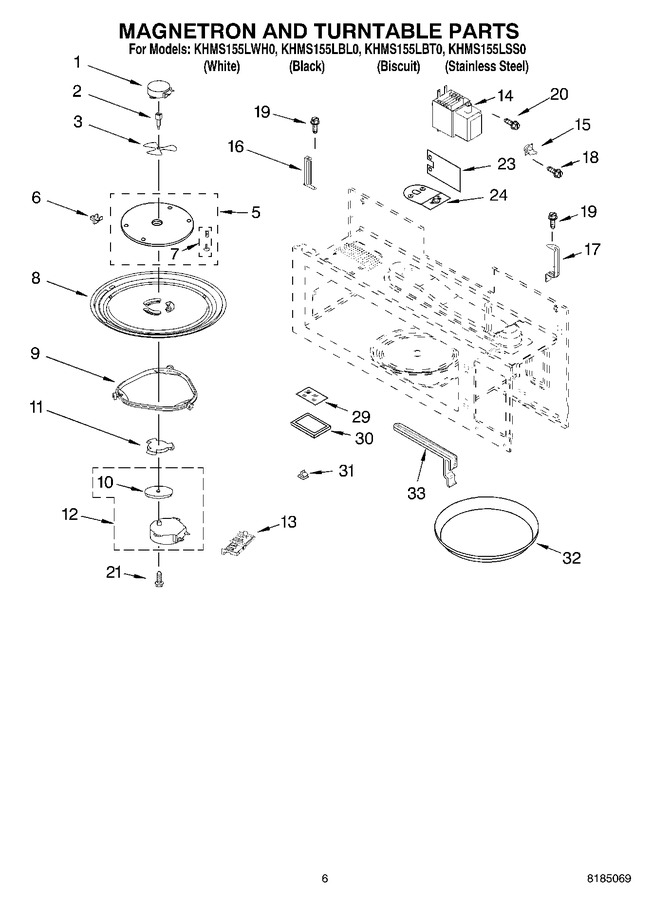

05 - Magnetron And Turntable


06 - Cabinet And Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4393746		Motor, Stirrer		Appelez-nous	-
2	4393794		Shaft, Stirrer		Appelez-nous	-
3	8184633		Stirrer		Appelez-nous	-
5	8184476		Cover, Inlet		Appelez-nous	-
6	W10315274		Hook, Rack (4)   (Replaces: 4393849)				$ 39.68
7	4393291		Nail, Plastic		Appelez-nous	-
8	4393799		Turntable				$ 82.90
9	W11252182		Ring, Turntable   (Replaces: 8184102)			Immediately	$ 35.60
10	8184109		Spacer, Waterproof				$ 6.26
11	W10435116		Driver, Turntable   (Replaces: 8183949)				$ 29.54
12	W10642989		Motor, Turntable   (Replaces: 8183954)			Immediately	$ 171.39
13	4393756		Cover, Terminal		Appelez-nous	-
14	W10245183		Magnetron   (Replaces: 8184306)			Immediately	$ 220.91
15	4393943		Thermostat		Appelez-nous	-
16	8169540		Holder, Connector (l)		Appelez-nous	-
17	8169705		Holder, Connector (r)		Appelez-nous	-
18	4393838		Screw		Appelez-nous	-
19	4393828		Screw		Appelez-nous	-
20	WP8181660		Screw   (Replaces: 4393831)				$ 6.26
21	4393832		Screw				$ 11.55
23	8184485		Shield, Nomex		Appelez-nous	-
24	8184585		Thermostat/bracket		Appelez-nous	-
29	8169499		Glass, Lamp		Appelez-nous	-
30	8169646		Frame, Glass				$ 6.64
31	8169647		Clip		Appelez-nous	-
32	W10748097		Pan, Crisping   (Replaces: 8169656)				$ 47.57
33	W10851464		Handle, Pan   (Replaces: 8169741)				$ 22.35
