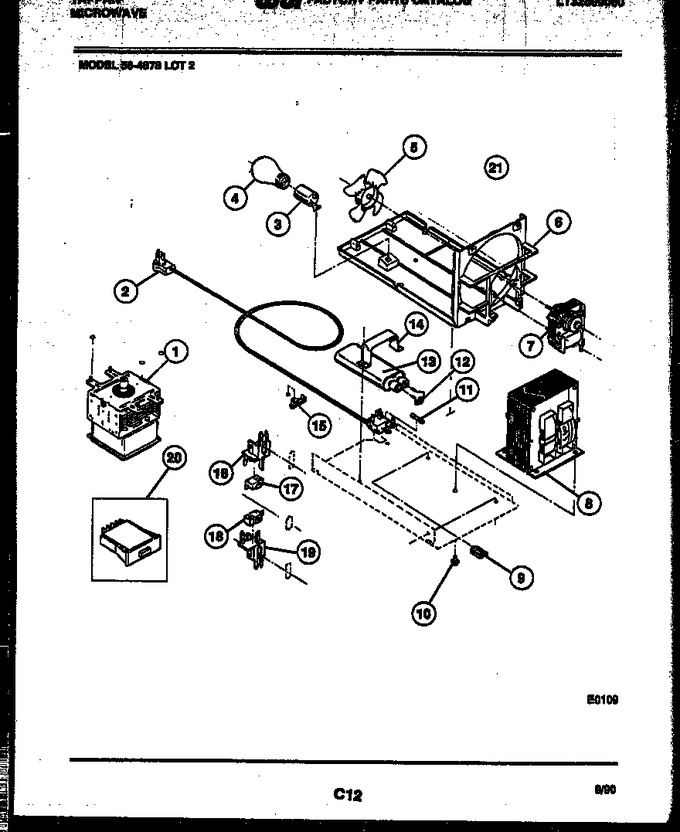

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303206781		Magnetron		Appelez-nous	-
2	5308037629		Cord-power		Appelez-nous	-
3	5303091197		Socket - Light		Appelez-nous	-
4	40A15		Light Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
5	5303203192		Fan-blade		Appelez-nous	-
6	5303012194		Duct-air (fan)		Appelez-nous	-
7	5308037636		Motor-fan		Appelez-nous	-
8	5308037626		Transformer		Appelez-nous	-
9	5308037677		Fastener-wire Clip (3)		Appelez-nous	-
10	5303013904		Screw-transformer (4)		Appelez-nous	-
11	5303011670		Fuse-20 Amp		Appelez-nous	-
12	5303091303		Diode High Voltage		Appelez-nous	-
13	5308037624		Capacitor		Appelez-nous	-
14	5303013771		Retainer-capacitor		Appelez-nous	-
15	5303091280		Fuse-thermal-blue		Appelez-nous	-
16	5303011556		Bracket-switch (upper)		Appelez-nous	-
17	5303203636		Switch, Interlock		Appelez-nous	-
18	5303203636		Switch, Interlock		Appelez-nous	-
19	5303011556		Bracket-switch (lower)		Appelez-nous	-
20	5303201602		Switch-monitor		Appelez-nous	-
21	5303017864		Seal Foam		Appelez-nous	-
*41268	191T75F159		Diagram-wiring (not For Purchase)		Appelez-nous	-
*41268	08037647		Insulator H.v. Mag. Term.		Appelez-nous	-
*41268	5303018251		Harness-main		Appelez-nous	-
*41269	5303018853		Harness-turntable		Appelez-nous	-
*41269	5303018857		Harness-browner		Appelez-nous	-
7A	5308014502		Screw Motor (2) (non-illustrated)		Appelez-nous	-
7B	5303013273		Nut-motor (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
