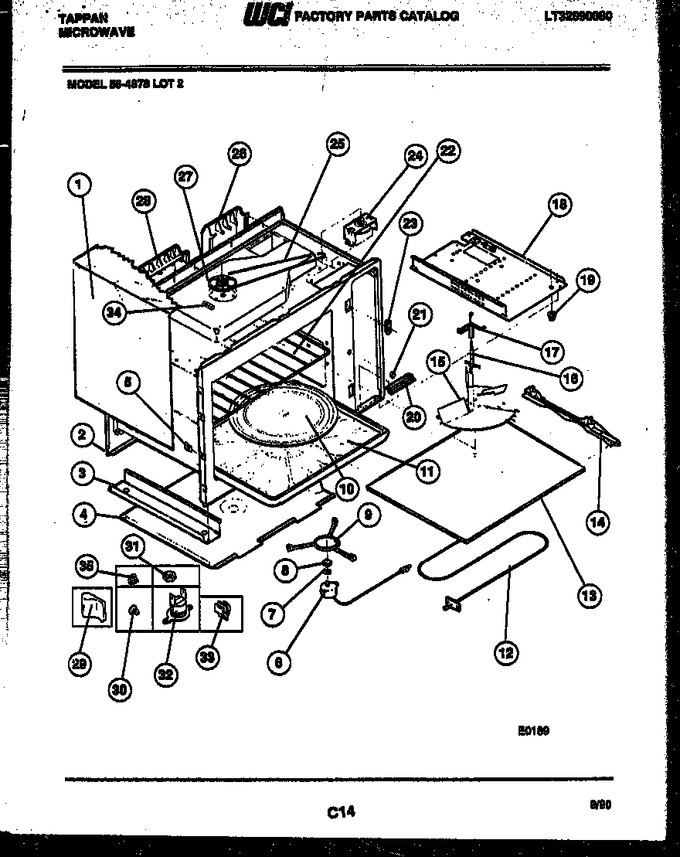

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303203254 | Wrapper |
|
- | |||||
| 3 | 5303011773 | Channel Base, Lh |
|
- | |||||
| 4 | 3014060 | Shield-oven Bottom |
|
- | |||||
| 5 | 3203010 | Hinge Clips (4) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 6 | 5308037652 | Motor-turntable |
|
- | |||||
| 7 | 5303017094 | Washer-microwave Seal (place Underneath-between Motor An |
|
- | |||||
| 8 | 5303922044 | Bushing-motor |
|
$ 78.33 | |||||
| 9 | 5303091004 | Support-roller Assy |
|
- | |||||
| 10 | 5308037674 | Tray-oven (circular) |
|
- | |||||
| 11 | 5303011698 | Tray-glass |
|
- | |||||
| 12 | 5303012207 | Element - Browner |
|
- | |||||
| 13 | 5303012681 | Glass - Stirrer Cover |
|
- | |||||
| 14 | 5303011776 | Channel Support Lh |
|
- | |||||
| 15 | 5308037708 | Fan Stirrer |
|
- | |||||
| 16 | 5303202875 | Support-stirrer |
|
- | |||||
| 17 | 5303011826 | Collar-stirrer |
|
- | |||||
| 18 | 5303210624 | Channel-base-rh |
|
- | |||||
| 19 | 5303014097 | Foot (4) |
|
- | |||||
| 20 | 5303011555 | Bracket-control Panel |
|
- | |||||
| 21 | 5308037644 | Grommet-door |
|
- | |||||
| 22 | 5303206085 | Rack-oven |
|
- | |||||
| 23 | 5303200551 | Bezel-latch (2) White |
|
- | |||||
| 24 | 5303091482 | Motor Stirrer W/ Belt |
|
- | |||||
| 25 | 5303011495 | Belt |
|
$ 23.31 | |||||
| 26 | 5303012196 | Duct Air (mag) |
|
- | |||||
| 27 | 5303013647 | Pulley-stirrer |
|
- | |||||
| 28 | 5303201371 | Duct-air Cavity |
|
- | |||||
| 29 | 5303012322 | Fastener-wrapper Clip (2) |
|
- | |||||
| 30 | 5308037665 | Plug-button Tray (2) |
|
- | |||||
| 31 | 5303131215 | Nut (channel Support L & R) |
|
- | |||||
| 32 | 5303202107 | Switch-thermal Cutout |
|
- | |||||
| 33 | 5303014221 | Support Rack (8) |
|
- | |||||
| 34 | 5308014510 | Spacer-wrapper (2) |
|
- | |||||
| 35 | 5303201365 | Plug-button |
|
- | |||||
| *41272 | 5303091100 | Screw-wrapper |
|
- | |||||
| *41272 | 5303203124 | Paint-white Touch Up |
|
- | |||||
| *41272 | 5303203125 | Paint-white Spray |
|
- | |||||
| 14A | 5303011777 | Channel Support Rh |
|
- | |||||
| 27A | 5303014620 | Washer-stirrer Pulley (non-illustrated) |
|
- | |||||
| 33A | 5303011685 | Shield-oven Light (non-illustrated) |
|
- | |||||
| 33B | 5303018849 | Label-cooking Guide (non-illustrated) |
|
- | |||||
| 33C | 5308037640 | Duct-air (foam) (non-illustrated) |
|
- |
