Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 67004078 Bracket, Control And Lights Appelez-nous -
3 W10143348 Overlay Appelez-nous -
4 W11416469 Housing, Electronic Control   (Replaces: 67005444) In-Stock Immediately $ 211.36

5 67006206 Electronic Control Appelez-nous -
6 W11384469 Switch, Light   (Replaces: C3680310) In-Stock Immediately $ 35.18

7 W11284721 Cover, Light   (Replaces: 67003897) Special Order $ 95.42

8 12806601 Housing, Light   (Replaces: 67003901) Special Order $ 99.18

9 WP67002552 Bulb, Light   (Replaces: 67002552) In-Stock Immediately $ 11.11

10 W11447232 Socket, Light   (Replaces: 67005886) In-Stock Immediately $ 12.48

11 67003900 Insert, Damper Cover Special Order $ 7.70

12 W11772394 Screw   (Replaces: 67006602) In-Stock Immediately $ 11.90

13 WP12806701 Cover, Damper   (Replaces: 67003899) Special Order $ 106.79

14 W11750607 Insulation   (Replaces: 67006604) Special Order $ 45.14

15 WPW10127430 Control, Damper   (Replaces: 67006117) Special Order $ 200.45

16 12002355 Thermister In-Stock Immediately $ 46.30

17 W11519867 Facade, Dispenser Top   (Replaces: 67005674) In-Stock Immediately $ 24.89

18 WP67001668 Plate   (Replaces: 67001668) In-Stock Immediately $ 15.08

19 W11361728 Tank, Water   (Replaces: 67004091) In-Stock Immediately $ 155.12

20 67004694 Facade, Dispenser Appelez-nous -
21 WP90767 Screw   (Replaces: 67006652) In-Stock Immediately $ 7.43

22 WP12575501 Switch, Limit   (Replaces: 12575501) Special Order $ 65.12

23 67004659 Head, Water Filter Includes Tubing Appelez-nous -
24 WP12568001 Cover, Filter   (Replaces: 12568001) In-Stock Immediately $ 81.98

25 67006169 Filter, Water Appelez-nous -
26 67003146 Plug, Bypass Appelez-nous -
27 WP2300868 Union   (Replaces: 61006182) In-Stock Immediately $ 33.29

28 67006701 Harness, Control (refrigerator) (includes 16) Appelez-nous -
28 WP8281196 Screw   (Replaces: 67006521) In-Stock Immediately $ 6.80

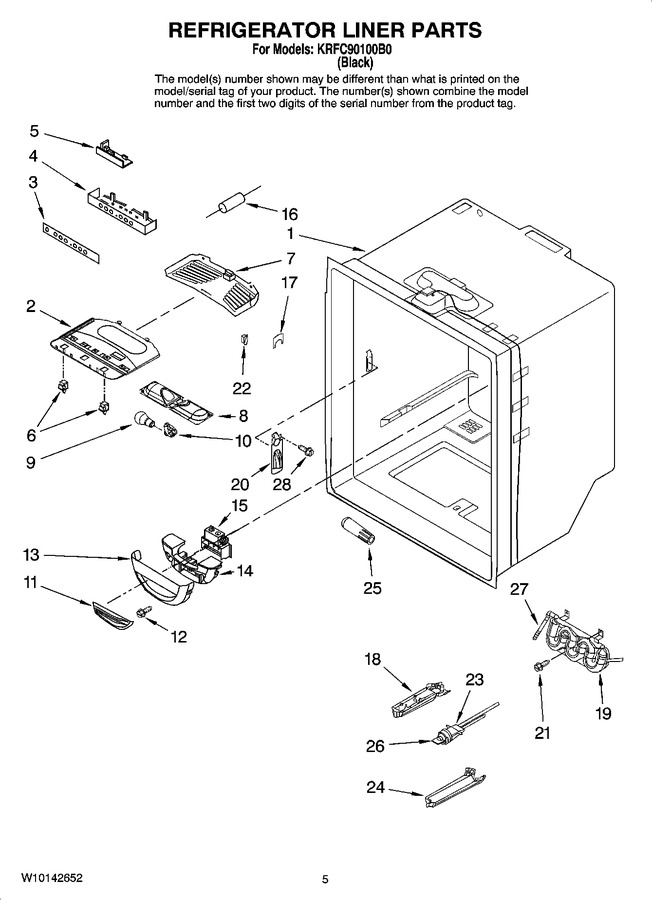

    View Diagram in Separate Window     Print Icon   Print Part List
