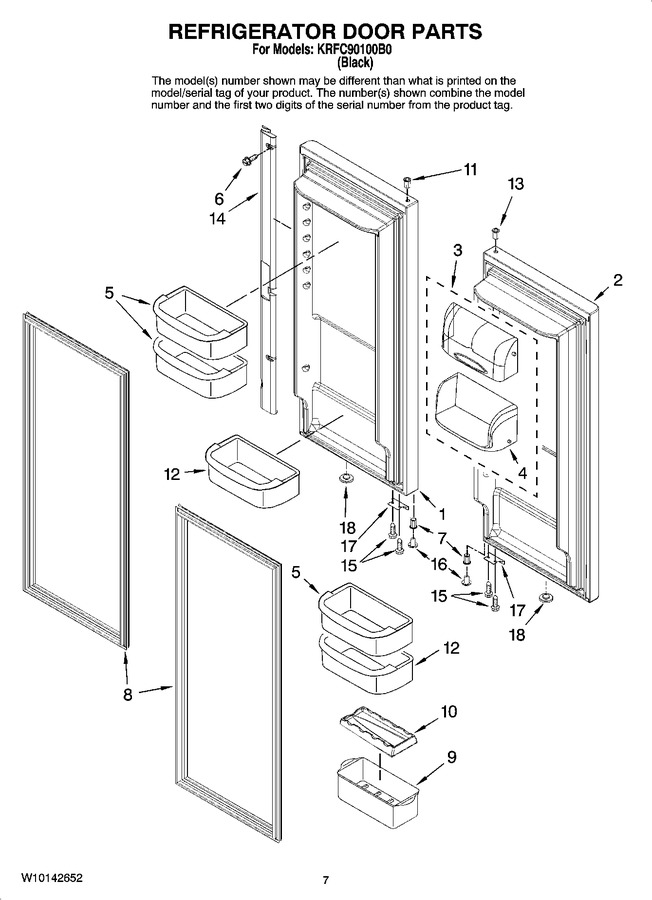

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12732423B		Door, Left (black)		Appelez-nous	-
2	12732422B		Door, Right (black)		Appelez-nous	-
3	WP12744905		Dairy, Door (includes Item 4)   (Replaces: 67003819)				$ 102.59
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
5	WPW10371195		Bin, Shelf (3) (medium)   (Replaces: 67005672)			Immediately	$ 78.63
6	W11311945		Screw   (Replaces: 67006786)				$ 13.25
7	WP67002731		Bushing, Rh Door   (Replaces: 67002731)			Immediately	$ 7.42
8	W11368721		Gasket, Door (black)   (Replaces: 12723206B)			Immediately	$ 194.02
9	W10136387A		Egg Bin   (Replaces: W10136387)				$ 17.59
10	67001656		Trivet, Bottle				$ 65.24
11	12395501B		Bushing, Door (upper Left) (black)		Appelez-nous	-
12	WPW10289498		Bucket, Gal (2)   (Replaces: 67005673)				$ 120.66
13	67004978		Bushing, Door (upper Right) (black)			Immediately	$ 19.89
14	W10143357		Mullion, Door (black)		Appelez-nous	-
15	WP98165		Screw   (Replaces: 67006287)				$ 7.71
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)			Immediately	$ 81.29
17	W11708403		Stop, Door (black)   (Replaces: 67003780)				$ 13.28
18	67004838		Plug, Button (black)				$ 10.09
